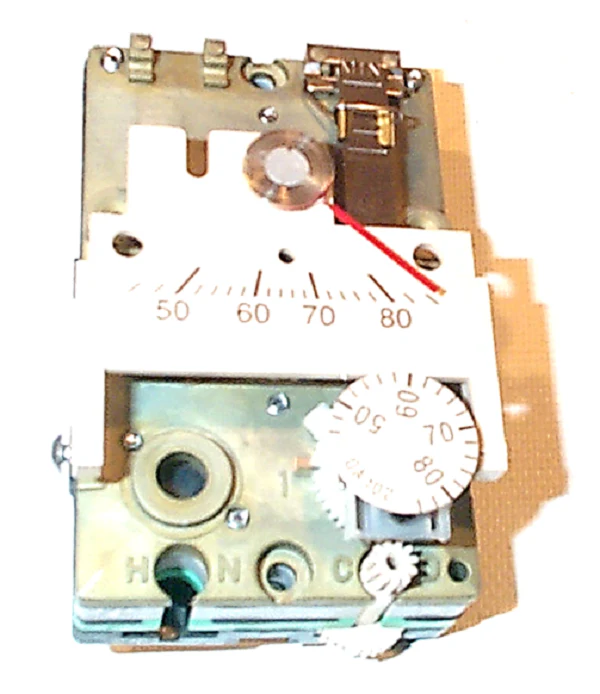

Siemens Building Technology 192-200 Stat
The Siemens Building Technology 192-200 is a professional-grade Powerstar 192S series pneumatic room thermostat designed for precise environmental control in commercial and institutional HVACR systems. This single setpoint, direct acting (DA) unit is engineered for 1-pipe configurations, delivering a proportional pneumatic output to modulate valves and damper actuators. Operating on a standard 18 to 25 psi air supply, the 192-200 features a highly sensitive bimetal element that provides rapid response to temperature fluctuations within a 45°F to 85°F range. The low air capacity non-relay design makes it an efficient solution for individual terminal unit control. This model includes integral field-adjustable limit stops and a test port for pressure verification without cover removal. Whether you are performing a Retroline retrofit or a new installation, this chassis comes complete with the necessary wall plate and mounting hardware for immediate implementation.
Key Benefits- Precise Response: The bimetal sensing element ensures accurate proportional control of heating and cooling loads.
- Simplified Maintenance: Features field-replaceable filters, restrictors, and thermometers to maximize service life.
- Universal Mounting: Includes a wall mounting plate compatible with various rough-in terminal boxes.
- Operational Efficiency: Adjustable limit stops allow contractors to set minimum and maximum setpoints to prevent energy waste.
- Direct Troubleshooting: An integrated test port allows technicians to check output pressure while the unit is fully assembled.
Is the Siemens 192-200 compatible with older Powers Controls systems?
Yes, as part of the Powerstar series, the 192-200 is the standard replacement for many legacy Powers pneumatic thermostats and can be used in Retroline applications to refresh aging pneumatic infrastructure.
What is the difference between this 1-pipe model and a 2-pipe model?
The 1-pipe configuration is a low-air-capacity sensor controller that requires an external restrictor in the supply line, typically used for controlling a single valve or actuator. 2-pipe models include an internal relay for high-capacity branch signals.
Can this thermostat be used for both heating and cooling?
This is a direct acting (DA) thermostat, meaning the output pressure increases as the temperature rises. It is suitable for heating or cooling applications depending on the fail-safe position and action of the linked actuator (e.g., normally open vs. normally closed).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $114.38
-65%$114.38
$40.03Siemens Building Technology 192-200 Stat
The Siemens Building Technology 192-200 is a professional-grade Powerstar 192S series pneumatic room thermostat designed for precise environmental control in commercial and institutional HVACR systems. This single setpoint, direct acting (DA) unit is engineered for 1-pipe configurations, delivering a proportional pneumatic output to modulate valves and damper actuators. Operating on a standard 18 to 25 psi air supply, the 192-200 features a highly sensitive bimetal element that provides rapid response to temperature fluctuations within a 45°F to 85°F range. The low air capacity non-relay design makes it an efficient solution for individual terminal unit control. This model includes integral field-adjustable limit stops and a test port for pressure verification without cover removal. Whether you are performing a Retroline retrofit or a new installation, this chassis comes complete with the necessary wall plate and mounting hardware for immediate implementation.
Key Benefits- Precise Response: The bimetal sensing element ensures accurate proportional control of heating and cooling loads.
- Simplified Maintenance: Features field-replaceable filters, restrictors, and thermometers to maximize service life.
- Universal Mounting: Includes a wall mounting plate compatible with various rough-in terminal boxes.
- Operational Efficiency: Adjustable limit stops allow contractors to set minimum and maximum setpoints to prevent energy waste.
- Direct Troubleshooting: An integrated test port allows technicians to check output pressure while the unit is fully assembled.
Is the Siemens 192-200 compatible with older Powers Controls systems?
Yes, as part of the Powerstar series, the 192-200 is the standard replacement for many legacy Powers pneumatic thermostats and can be used in Retroline applications to refresh aging pneumatic infrastructure.
What is the difference between this 1-pipe model and a 2-pipe model?
The 1-pipe configuration is a low-air-capacity sensor controller that requires an external restrictor in the supply line, typically used for controlling a single valve or actuator. 2-pipe models include an internal relay for high-capacity branch signals.
Can this thermostat be used for both heating and cooling?
This is a direct acting (DA) thermostat, meaning the output pressure increases as the temperature rises. It is suitable for heating or cooling applications depending on the fail-safe position and action of the linked actuator (e.g., normally open vs. normally closed).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
