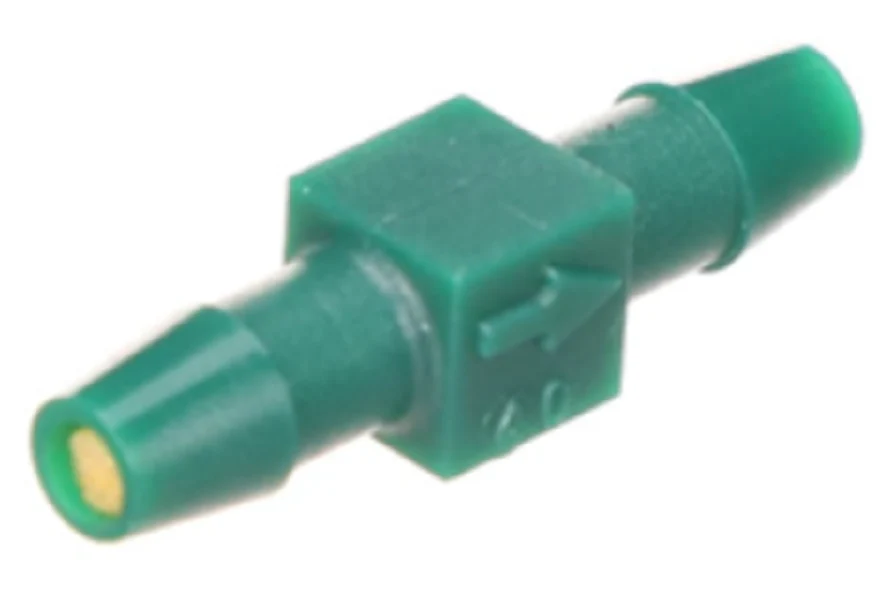

Siemens Building Technology 184-117 Restrictor
The Siemens Building Technology 184-117 is a precision-engineered 40 SCIM inline restrictor kit designed for critical signal dampening and flow regulation in pneumatic control circuits. Optimized for Siemens building automation systems, these restrictors are essential for stabilizing HVAC control loop responses and fine-tuning actuator performance. Each inline restrictor kit contains five units, allowing technicians to maintain consistent airflow rates across multiple instrumentation lines or complex pneumatic control systems. By providing a fixed 40 Standard Cubic Inches per Minute (SCIM) restriction, this component prevents rapid pressure fluctuations that lead to hunting in pneumatic relays and controllers. Whether you are performing routine maintenance or a full system overhaul, utilizing genuine HVAC airflow control components like the 184-117 ensures industrial-grade reliability and seamless BAS compatibility. This field-proven solution is the standard for commercial building controls requiring precise pneumatic signal stabilization.
Key Benefits:
- Ensures precise 40 SCIM restriction for predictable pneumatic signal response.
- Minimizes control hunting by providing effective signal dampening in instrumentation lines.
- Seamless integration with Siemens Building Technology hardware and legacy pneumatic setups.
- Convenient 5-pack configuration supports multi-point field installations and reduces downtime.
- Durable inline design allows for quick installation in standard HVAC control circuits.
Common Questions:
How do I install the 184-117 restrictor in an existing line?
The unit is designed for inline installation; simply cut the pneumatic tubing and insert the restrictor into the flow path, ensuring secure connections to maintain system pressure integrity.
What is the primary function of a 40 SCIM rating?
The rating indicates a flow capacity of 40 Standard Cubic Inches per Minute, which is specifically calibrated to slow down the pneumatic signal, preventing "jumpy" actuator movement and stabilizing the control loop.
Is this part compatible with non-Siemens pneumatic systems?
Yes, as long as the system utilizes standard pneumatic tubing and requires a 40 SCIM restriction, this component is compatible with most poly or copper line configurations found in commercial building automation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
