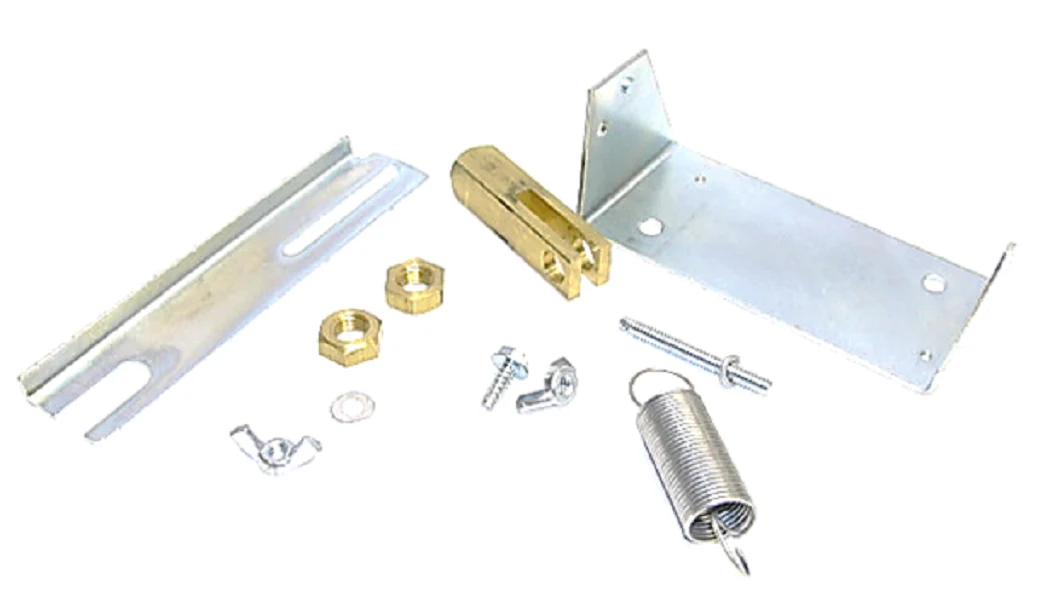

Siemens Building Technology 147-314 Kit
The Siemens Building Technology 147-314 Kit is a specialized pneumatic damper actuator mounting kit engineered for field installation of the RL 147 positioning relay. Designed specifically for compatibility with No. 4 pneumatic actuators, this professional-grade hardware set ensures precise feedback and localized control in complex HVACR air-handling systems. A veteran technician understands that proper actuator linkage and relay alignment are critical; this kit provides the necessary mounting bracket, feedback spring, and specialized hardware to maintain a parallel relationship between the spring and the actuator shaft. Eliminating air signal lag and improving positioning relay calibration, the 147-314 is the industry standard for contractors upgrading existing Powers Controls pneumatic systems. Every component, from the 3/8-24 hex nut to the 1-3/4 inch adjusting screw, is manufactured to rigorous Siemens specifications to ensure the terminal unit or mixing box damper operates with high repeatable accuracy in volatile pressure environments.
Key Benefits- Universal Compatibility: Specifically precision-machined for direct attachment to all standard No. 4 pneumatic damper actuators.
- High-Accuracy Feedback: Includes a heavy-duty feedback spring and adjusting screw to ensure the positioning relay receives an exact mechanical signal.
- Field-Ready Implementation: Comprehensive damper mounting hardware allows for immediate on-site integration without the need for custom-fabricated brackets.
- Robust Mechanical Linkage: Hardened steel components resist vibration and environmental wear in high-duty cycle air handling applications.
Is this kit compatible with No. 6 or No. 3 actuators?
No, the 147-314 is specifically sized for the physical dimensions and stroke length of No. 4 pnuematic actuators. For larger No. 6 units, a 147-2000 series kit is typically required.
Does this include the RL 147 Positioning Relay itself?
This is a mounting kit only. It provides the mechanical linkage and bracketry needed to secure a relay to the actuator lower housing; the relay must be purchased separately.
What is the primary function of the adjusting screw in this kit?
The adjusting screw allows the technician to set the initial tension on the feedback spring, ensuring there is no slack and the relay can accurately track the actuator stem position.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
