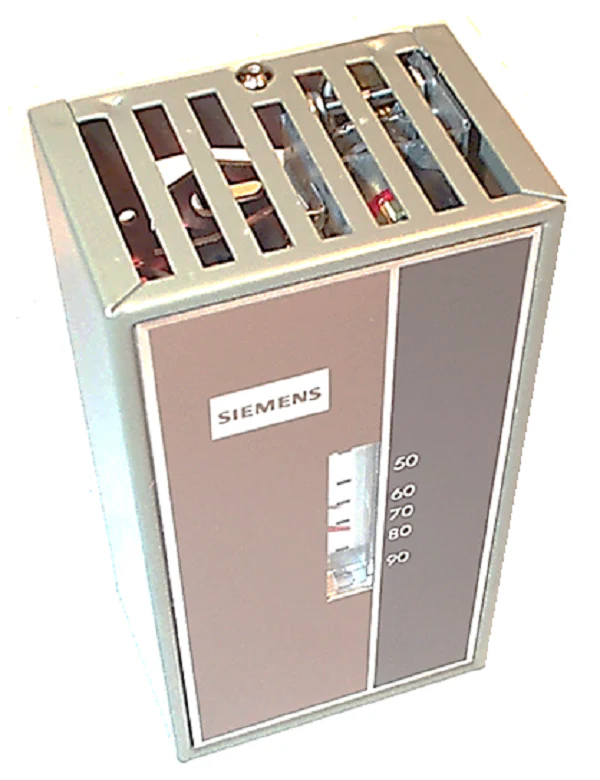

Siemens Building Technology 134-1083 T-Stat
The Siemens Building Technology 134-1083 T-Stat is a professional-grade line voltage thermostat engineered for precise 120/240 Vac on/off control in commercial and industrial HVACR environments. This mechanical room thermostat features a single-pole, single-throw (SPST) contact configuration, optimized for heating applications such as electric baseboard heaters, unit heaters, and blast coils. Designed with a concealed setpoint adjustment to prevent unauthorized tampering in public or high-traffic areas, the 134-1083 includes an integrated Auto-Off-Fan selector switch and an exposed bimetal thermometer for real-time local monitoring. With a temperature setpoint range of 40 to 90°F (5 to 32°C) and a tight 1.8°F switching differential, this controller ensures stable thermostatic regulation. The unit's construction includes a separable mounting plate for streamlined field wiring and a locking cover secured by Allen screws, making it a reliable choice for HVAC contractors requiring durable, low-maintenance electric line voltage temperature control.
Key Benefits for Technicians:- Tamper-Resistant Security: The concealed setpoint and locking cover prevent end-user adjustments, maintaining system balance in commercial HVAC settings.
- High Load Compatibility: Rated for both 120 and 240 Vac, supporting standard-duty inductive loads and resistive electric heat.
- Integrated Fan Control: Features a built-in Auto-Off-Fan switch for direct manual override of ventilation components.
- Precision Sensing: Utilizes a high-sensitivity bimetal element with adjustable high and low limit stops to protect equipment from extreme cycling.
- Simplified Installation: The separable mounting plate allows for pre-wiring to the conduit box without exposing the sensitive internal components.
Is the Siemens 134-1083 compatible with cooling systems?
While the 134 series includes various models, the 134-1083 is wired specifically for heating-only or year-round air conditioning units with appropriate SPST wiring; it is primarily utilized for electric heat and unit heater applications.
Can I use this for 277V applications?
No, the Siemens 134-1083 is rated for 120/240 Vac. For 277V circuits, you must verify the specific contact ratings or utilize a dedicated high-voltage relay.
How do I adjust the temperature if the dial is concealed?
The setpoint is adjusted by removing the locking cover using the provided Allen wrench, allowing the technician to set parameters that remain fixed once the cover is re-secured.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
