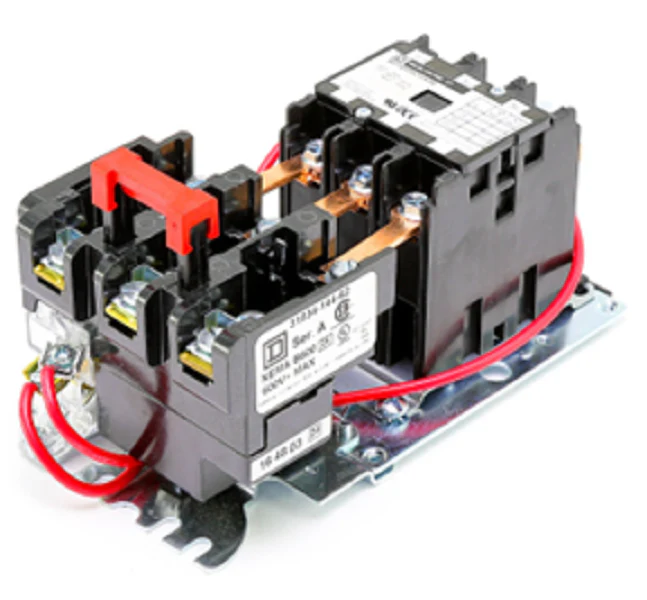

Schneider Electric (Square D) 8911DPSO13V06 Starter
The Schneider Electric (Square D) 8911DPSO13V06 Starter is a commercial-grade motor control solution specifically engineered for the high-demand requirements of HVACR and industrial pumping applications. As a 3-pole 20 amp 480V starter, this Type DPS definite purpose starter provides reliable full-voltage non-reversing (FVNR) control for motors up to 7.5 HP at 460/575 VAC. Its magnetic motor starter design utilizes a high-performance 480V 60Hz coil to ensure consistent engagement in heavy-duty cycles, making it the preferred nema motor control component for compressors and air handling units.
Built for direct-on-line (DOL) starts, the 8911DPSO13V06 features a melting alloy thermal overload relay which provides essential overcurrent protection when paired with the appropriate Type B thermal units. The open enclosure design is optimized for space-efficient mounting within existing control panels, while the 600V AC maximum voltage rating ensures robust electrical performance. Contractors choose this definite purpose magnetic starter for its proven industry-standard compatibility and simplified installation process in both new builds and mechanical retrofit projects.
Key Benefits- High-Power Rating: Capable of managing 3-phase loads up to 7.5 HP at 480V, ideal for larger blower motors and pump systems.
- Thermal Protection Integration: Includes a melting alloy overload block to prevent motor burnout during locked-rotor or overcurrent events.
- Standardized Footprint: The compact, open-frame construction allows for easy integration into standard NEMA enclosures and retrofit panels.
- Voltage Versatility: Dual-rated for 440V AC at 50 Hz and 480V AC at 60 Hz to accommodate various power supply standards.
- Durable Construction: Engineered to withstand the frequent cycling common in air conditioning and refrigeration service.
What horsepower motors is this starter compatible with?
This 20A starter is rated for 7.5 HP at 230/460/575V 3-phase, 1.5 HP at 115V 1-phase, and 3 HP at 230V 1-phase.
Does this unit include thermal heaters?
The starter includes the melting alloy overload block, but Type B thermal units must be selected and purchased separately based on the motor's full load amperage (FLA).
Is this suitable for outdoor installation?
No, this is an open-type starter. It must be installed inside a suitable NEMA-rated enclosure to protect against dust, moisture, and environmental contaminants.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
