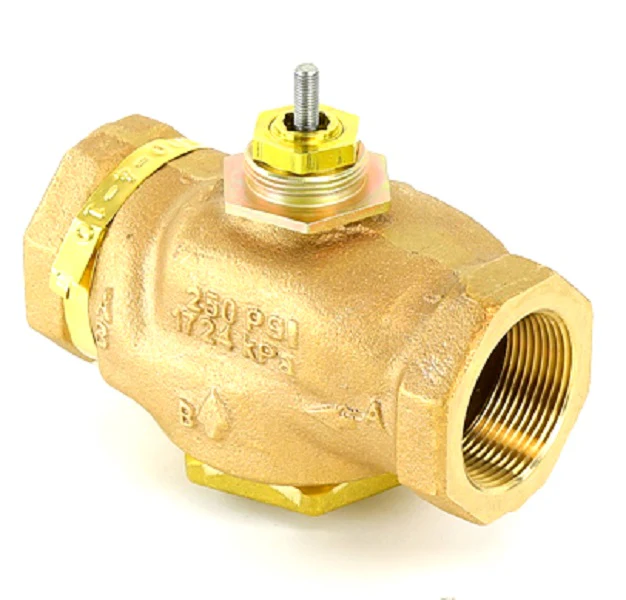

Schneider Electric (Barber Colman) VB-7223-0-4-10 Valve
The Schneider Electric (Barber Colman) VB-7223-0-4-10 Valve is a 1 1/2" NPT globe valve designed for precision control in commercial HVACR systems. Built with a heavy-duty bronze body and durable brass trim, this two-way globe valve is engineered for chilled water, hot water, and low-pressure steam applications. The 28 Cv rating and equal percentage flow characteristic ensure linear heat transfer and stable temperature regulation even under varying load conditions. As a stem up closed (normally closed) configuration, it offers reliable fail-safe operation when paired with compatible Schneider Electric actuators such as the SpaceLogic series. This VB-7000 series valve handles fluid temperatures from 20°F to 281°F and maintains a maximum operating pressure of 250 psig, meeting strict ANSI Class IV leakage standards. For technicians, the spring-loaded TFE packing provides a long-lasting seal, reducing maintenance calls and ensuring high rangeability for critical fan coil and reheat coil configurations.
Key Benefits- High Rangeability: Delivers accurate throttling for efficient heat exchange and stable environment control.
- Rugged Construction: The ASTM B584 bronze body and brass trim offer superior corrosion resistance in hydronic loops.
- Standardized Threading: 1 1/2" FNPT connections allow for seamless integration into existing commercial HVAC piping.
- Steam Compatible: Rated for low-pressure steam up to 281°F, making it a versatile choice for multi-season systems.
- Low Leakage: ANSI Class IV rating ensures minimal energy loss during shut-off periods.
What actuators are compatible with the VB-7223-0-4-10?
This valve body is designed to mount directly to Schneider Electric SpaceLogic M900A, MG350, and M400A series linear actuators without the need for complex linkages in many setups.
Is this valve suitable for combustible gas?
No, the TFE packing and internal seals are strictly rated for water, glycol solutions (up to 60%), and steam. Do not use this model for gas service.
Can this valve be field-serviced?
Yes, the VB-7200 series allows for packing replacement and internal cleaning, though the stem and plug assembly should be inspected for wear to maintain the 28 Cv flow accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $371.15
-65%$371.15
$129.90Schneider Electric (Barber Colman) VB-7223-0-4-10 Valve
The Schneider Electric (Barber Colman) VB-7223-0-4-10 Valve is a 1 1/2" NPT globe valve designed for precision control in commercial HVACR systems. Built with a heavy-duty bronze body and durable brass trim, this two-way globe valve is engineered for chilled water, hot water, and low-pressure steam applications. The 28 Cv rating and equal percentage flow characteristic ensure linear heat transfer and stable temperature regulation even under varying load conditions. As a stem up closed (normally closed) configuration, it offers reliable fail-safe operation when paired with compatible Schneider Electric actuators such as the SpaceLogic series. This VB-7000 series valve handles fluid temperatures from 20°F to 281°F and maintains a maximum operating pressure of 250 psig, meeting strict ANSI Class IV leakage standards. For technicians, the spring-loaded TFE packing provides a long-lasting seal, reducing maintenance calls and ensuring high rangeability for critical fan coil and reheat coil configurations.
Key Benefits- High Rangeability: Delivers accurate throttling for efficient heat exchange and stable environment control.
- Rugged Construction: The ASTM B584 bronze body and brass trim offer superior corrosion resistance in hydronic loops.
- Standardized Threading: 1 1/2" FNPT connections allow for seamless integration into existing commercial HVAC piping.
- Steam Compatible: Rated for low-pressure steam up to 281°F, making it a versatile choice for multi-season systems.
- Low Leakage: ANSI Class IV rating ensures minimal energy loss during shut-off periods.
What actuators are compatible with the VB-7223-0-4-10?
This valve body is designed to mount directly to Schneider Electric SpaceLogic M900A, MG350, and M400A series linear actuators without the need for complex linkages in many setups.
Is this valve suitable for combustible gas?
No, the TFE packing and internal seals are strictly rated for water, glycol solutions (up to 60%), and steam. Do not use this model for gas service.
Can this valve be field-serviced?
Yes, the VB-7200 series allows for packing replacement and internal cleaning, though the stem and plug assembly should be inspected for wear to maintain the 28 Cv flow accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
