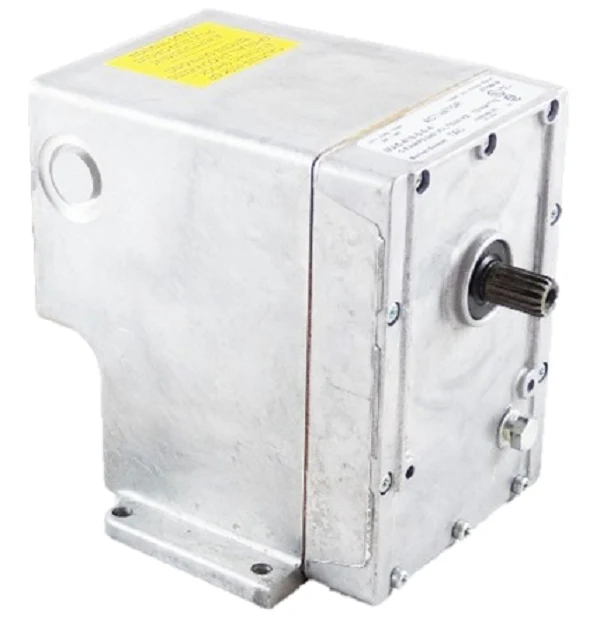

Schneider Electric (Barber Colman) MA5-419 Motor
The Schneider Electric (Barber Colman) MA5-419 is a high-torque electric rotary actuator designed for the reliable two-position control of dampers and globe valves in commercial HVAC and industrial systems. Engineered for 240V 50Hz operation, this unit delivers a consistent 60 lb-in torque output, making it a staple for contractors managing large-scale air handling and fluid regulation projects. As a spring return (S/R) motor, it ensures a fail-safe clockwise (CW) rotation to the 180-degree position upon power application and a dependable counter-clockwise (CCW) return to the normal state during power interruptions. Built with a rugged die-cast aluminum housing and an oil-immersed gear train, the MA5-419 motor is optimized for longevity in demanding environments. This model features a compact footprint for streamlined HVAC damper actuator integration and utilizes coded screw terminals for simplified field wiring within standard NEMA 1 or NEMA 4 enclosures when properly gasketed.
Key Benefits- Fail-Safe Protection: Reliable spring return mechanism ensures dampers or valves return to a safe state during power loss.
- Industrial Durability: The oil-immersed motor and gears reduce internal friction and heat, extending the service life of the Barber Colman actuator.
- High Torque Output: Rated at 60 lb-in torque, providing the mechanical force necessary for heavy-duty rotary applications.
- Installation Versatility: Direct-coupled mounting compatible with VB-series valves and standard damper linkages.
- Precision Control: Features a synchronized two-position operation for standard 180-degree rotational requirements.
What is the primary application for the MA5-419?
This motor is specifically designed for two-position control of HVAC dampers and globe valves that require a fail-safe return to the original position when power is cut.
Does this unit support 60Hz power systems?
The MA5-419 is specifically rated for 240V 50Hz power supplies. For 60Hz legacy systems, verifying electrical compatibility with existing site transformers is essential to maintain proper timing and torque.
Is the mounting orientation restricted?
Yes, for the Schneider Electric MA5-419, it is recommended that the output shaft is positioned horizontally to ensure proper lubrication of the oil-immersed gear train.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
