Sanyo HVAC SI-33-230 Pump
The Sanyo HVAC SI-33-230 Pump is a high-capacity mini condensate removal pump engineered for demanding HVACR applications requiring a 230V power supply. Designed specifically for high-output systems up to 8.4 tons, this Sauermann Si-33 piston pump provides a maximum flow rate of 8 GPH and a substantial 43-foot discharge head. Its compact mini split pump geometry allows for flexible field installation above the unit, in a ceiling void, or within plastic trunking. The SI-33-230 features advanced piston technology to handle small particles and pollutants without clogging, ensuring reliable operation in residential, commercial, and industrial environments. With a low 34 dBA sound rating and a thermal protection threshold of 240°F, this unit maintains whisper-quiet performance while preventing overheating. The inclusion of a normally closed safety switch (8A resistive) provides critical overflow protection, making it a drop-in replacement for legacy Panasonic Sanyo condensate management systems.
Key Benefits for Technicians:
- High Volume Performance: Supports units from 5.6 to 8.4 tons with an industry-leading 8 GPH flow rate.
- Advanced Lift Capacity: Achieves a 43-foot max discharge head and 13-foot max suction head for complex routing.
- Maintenance-Focused Design: Features a locking power cord and a transparent, vibration-dampening mounting bracket for fast service.
- Contaminant Resistance: Piston design is specifically optimized to discharge small particulates found in common condensate.
- Compact Footprint: Narrow dimensions (2-5/8" x 1-3/4" x 2-3/8") fit into tight evaporator clearances and lineset covers.
Common Field Questions:
Will this pump handle a high-static ducted system?
Yes, the 43-foot lift capacity is specifically designed to handle the pressure requirements of ducted and ceiling-suspended units where long vertical runs are necessary.
Does it include the detection unit?

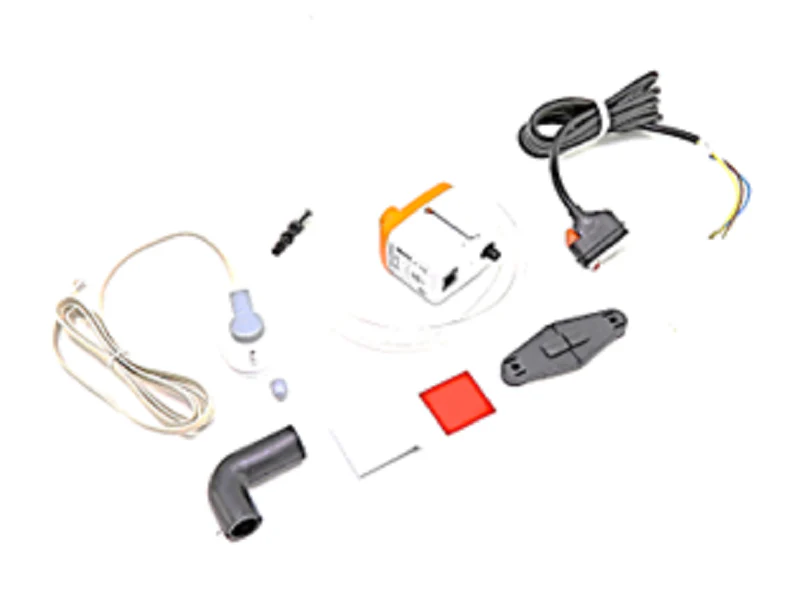

The SI-33-230 typically includes the Si-2958 detection unit, which features three-level float logic (On/Off/Safety) to prevent reservoir overflow.
Can I use this for 208V applications?
This model is rated for 230V 50/60Hz power supplies, making it compatible with most standard 208-230V mini-split and light commercial circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
