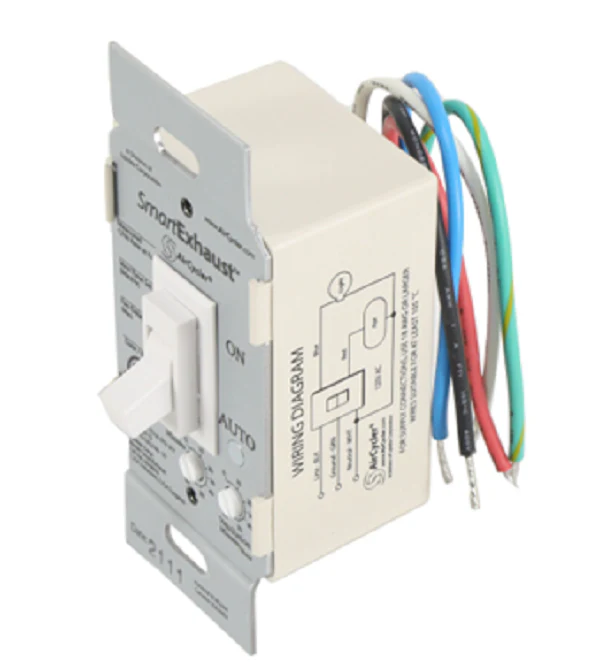

Sanyo HVAC FV-WCPT1-W Control
The Panasonic FV-WCPT1-W SmartExhaust Control is an essential microprocessor-based solution for contractors looking to achieve ASHRAE 62.2 compliance using standard ventilation equipment. This single-gang wall control replaces independent fan and light switches, streamlining the user interface while automating critical air exchange. By integrating a programmable delay timer and hourly ventilation settings, the FV-WCPT1-W ensures that exhaust runtimes meet indoor air quality requirements without manual intervention.
Engineered for high-duty residential and light commercial applications, this 120V exhaust fan control features two primary adjustment dials located behind the faceplate. The "Ventilation" setting defines the total minutes per hour the fan operates to satisfy code, while the "Delay" setting allows the fan to continue running for a set duration after the light is switched off. The onboard logic intelligently tracks manual overrides; if a technician or occupant runs the fan manually, that time is subtracted from the next hour's programmed cycle to maximize efficiency and maintain Energy Star performance. The FV-WCPT1-W is fully compatible with LED, CFL, incandescent, and fluorescent lighting loads up to 15 Amps.
Key Benefits:- Ensures ASHRAE 62.2 and LEED compliance for localized exhaust systems.
- Replaces dual-switch configurations with a single smart exhaust control in a standard 1-gang box.
- Features a programmable delay timer to clear residual moisture after occupancy.
- Advanced microprocessor logic prevents over-ventilation by accounting for manual runtimes.
- Universal compatibility with all modern ballast and driver types, including high-efficiency LED.
- Does this control require a neutral wire? Yes, for proper microprocessor operation and timing accuracy, a neutral connection is required at the wall box.
- Can I use this with non-Panasonic fans? Yes, while optimized for the Whisper series, it functions with any standard 120V ventilation fan and light combo within its amperage rating.
- Is the wall plate included? No, the FV-WCPT1-W requires a standard decorator-style wall plate, which is sold separately.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
