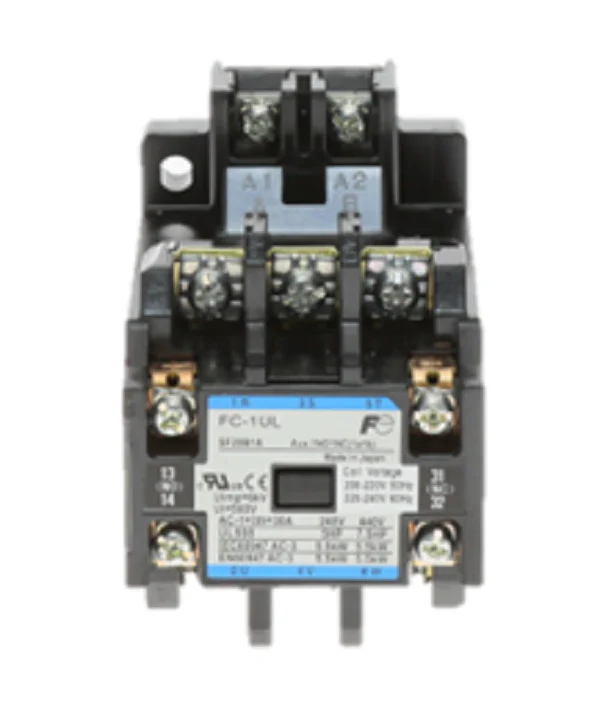

Sanyo HVAC 6231596800 Contactor
The Sanyo HVAC 6231596800 Contactor is a specialized OEM replacement component engineered for high-demand climate control systems, including multi-zone mini-splits and commercial AC units. Featuring a heavy-duty 200V coil, this 3-pole magnetic relay is rated for a 30AMP inductive load, ensuring reliable power switching for high-torque compressors and blower motors. The integration of auxiliary contacts (W/AUX CONT) allows for critical feedback loops and secondary control logic, which is essential for modern HVAC automation and safety interlocks. As a genuine Sanyo HVAC part, it guarantees exact dimensional and electrical compatibility, preventing the common arcing and premature pitting often seen in generic universal alternatives. When diagnosing failed contactors, this unit serves as the direct specification-grade solution to restore 3-phase power distribution or high-amperage single-phase systems requiring a tri-pole configuration. For technicians, the industrial-grade terminal design ensures secure, low-resistance connections under high thermal cycles.
Key Benefits- 3-Pole Design: Provides simultaneous switching across three lines, making it compatible with 3-phase compressors or multi-circuit configurations.
- 30AMP Rated Capacity: Built to handle the high inrush current of HVAC start-up cycles without contact welding.
- Auxiliary Contact Integration: Enables advanced system monitoring and interlocking with secondary controls or indicator circuits.
- OEM Precision: Designed specifically for Sanyo systems to maintain original performance parameters and thermal dissipation requirements.
- 200V Coil Optimization: Voltage-matched for specific residential and light commercial power grids common in overseas or specialized domestic equipment.
Can I use a 24V coil contactor as a substitute for this 200V model?
No. The control circuit must match the specified coil voltage. Using a lower voltage coil will cause an immediate failure and may damage the control board.
What is the purpose of the auxiliary contacts on this part?
The auxiliary contacts act as a secondary switch used for signaling. Technicians often use these to verify the contactor is engaged or to trigger auxiliary components like crankcase heaters or status LEDs.
Is this contactor compatible with other brands besides Sanyo?
While the electrical specifications (3P, 30A, 200V) are standard, the mounting footprint and terminal layout are specific to Sanyo and Panasonic-related equipment. Always verify the part number 6231596800 before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
