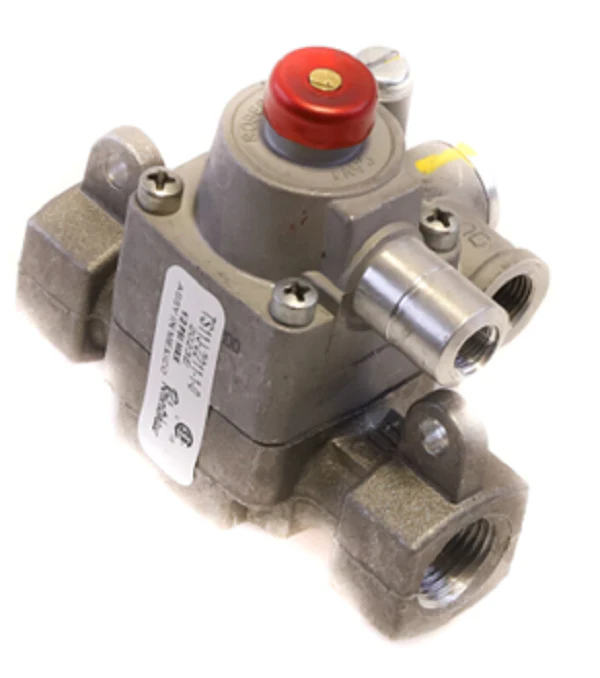

Robertshaw TS11J-2211-1-0 Valve
The Robertshaw TS11J-2211-1-0 magnet safety valve is a critical millivolt safety control designed for use in specialized commercial cooking applications and high-output heating systems. This gas safety valve features a 1/4" tubing inlet and outlet configuration, specifically engineered to manage the flow of gas to the pilot and main burner. As an automatic shut-off valve, the TS11 series responds to a loss of pilot flame by dropping out the thermocouple-driven magnetic operator, halting gas flow to prevent hazardous accumulation. This unit is rated for high-ambient temperatures and is compatible with various standing pilot systems found in commercial ovens and fryers. When performing a replacement safety valve installation, ensure the thermocouple is seated correctly to maintain the required millivolt signal. This robust Robertshaw control valve is built for durability in demanding environments where precise pilot flame monitoring is non-negotiable for system safety.
Key Technical Benefits:
- Universal Compatibility: Designed for standard 1/4" tubing connections used in numerous commercial appliance brands.
- Rapid Response: Magnetic operator ensures immediate gas shut-off if the pilot flame is extinguished.
- High Temperature Resistance: Optimized for use in hot-zone areas within commercial kitchen lineups.
- Compact Footprint: Fits into tight manifold configurations without requiring extensive piping modifications.
Common Installation Questions:
- How do I troubleshoot a valve that won't stay open? Most issues stem from a weak thermocouple signal or debris in the pilot orifice rather than the valve itself; verify you have at least 15-30mV under load.
- Can this valve be used with Propane (LP) and Natural Gas? Yes, this valve is rated for use with both gas types, provided the rest of the system is properly orificed.
- What is the purpose of the manual reset button? The button overrides the spring tension to allow the magnet to engage the thermocouple signal during initial lighting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
