Robertshaw 712-017 Kit

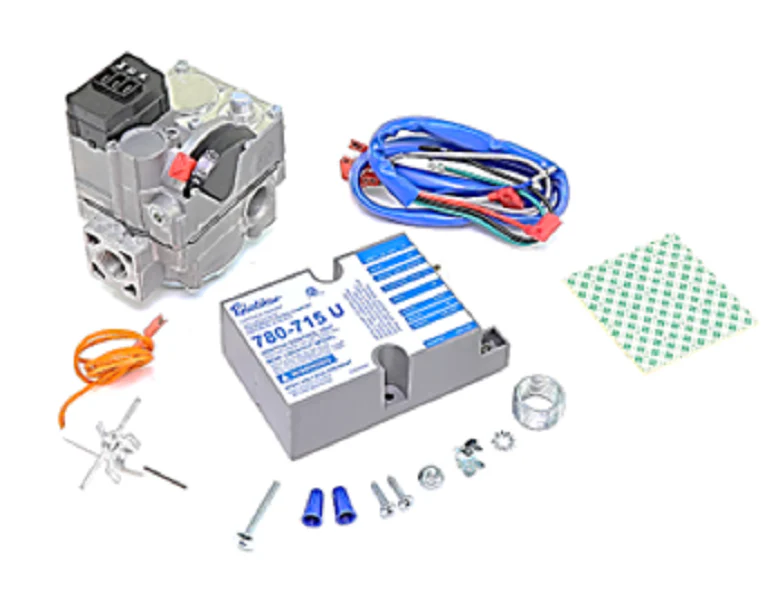

The Robertshaw 712-017 Kit is a field-proven solution designed to convert conventional standing pilot systems to efficient intermittent pilot ignition. This 24V non-lockout system utilizes advanced flame rectification and robust solid-state logic to provide reliable automatic sequencing. Built for natural gas applications, the kit includes a high-capacity 720-070 gas valve with a 1/2" inlet and 3/4" outlet, supporting up to 200,000 BTU. The included 780-715 ignition control module ensures continuous retry for pilot ignition, making it ideal for high-demand environments where system downtime must be minimized. This intermittent pilot ignition system simplifies retrofitting with a comprehensive package that features a spark/sensor probe and specialized wiring harnesses. For technicians servicing multi-zone residential or light commercial units, this universal kit offers precise 3.5" WC pressure regulation and compatibility with various HVAC gas valve configurations. Field-ready and built for durability, it provides the technical precision required for modern ignition system kit replacements.
Key Benefits- Universal Compatibility: Direct replacement for numerous Honeywell and Johnson Controls pilot systems, easing the inventory burden for service trucks.
- Enhanced Efficiency: Transitions equipment from standing pilot to intermittent ignition, significantly reducing fuel consumption during standby.
- Non-Lockout Operation: The continuous retry logic ensures the Robertshaw 712-017 attempts re-ignition without requiring a manual reset if the flame signal is temporarily lost.
- Complete Retrofit Package: Includes the gas valve, ignition control module, wiring, and sensor probe to ensure all critical components match for a stable flame current.
Can I use the 712-017 for LP gas conversions?
No, this specific kit is engineered and factory-set exclusively for natural gas. Using it with Propane/LP gas is unsafe and will void proper operation of the internal regulator.
What happens if the pilot fails to light on the first attempt?
As a non-lockout model, the 780-715 control will continue to spark and provide gas to the pilot until rectification is successful or the thermostat call ends.
Is this kit a direct fit for 1/2" piping?
The valve features a 1/2" inlet and a 3/4" outlet. Ensure your manifold configuration or reducers are prepared to accommodate this specific sizing for a leak-free HVACR installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Robertshaw 712-017 Kit
The Robertshaw 712-017 Kit is a field-proven solution designed to convert conventional standing pilot systems to efficient intermittent pilot ignition. This 24V non-lockout system utilizes advanced flame rectification and robust solid-state logic to provide reliable automatic sequencing. Built for natural gas applications, the kit includes a high-capacity 720-070 gas valve with a 1/2" inlet and 3/4" outlet, supporting up to 200,000 BTU. The included 780-715 ignition control module ensures continuous retry for pilot ignition, making it ideal for high-demand environments where system downtime must be minimized. This intermittent pilot ignition system simplifies retrofitting with a comprehensive package that features a spark/sensor probe and specialized wiring harnesses. For technicians servicing multi-zone residential or light commercial units, this universal kit offers precise 3.5" WC pressure regulation and compatibility with various HVAC gas valve configurations. Field-ready and built for durability, it provides the technical precision required for modern ignition system kit replacements.
Key Benefits- Universal Compatibility: Direct replacement for numerous Honeywell and Johnson Controls pilot systems, easing the inventory burden for service trucks.
- Enhanced Efficiency: Transitions equipment from standing pilot to intermittent ignition, significantly reducing fuel consumption during standby.
- Non-Lockout Operation: The continuous retry logic ensures the Robertshaw 712-017 attempts re-ignition without requiring a manual reset if the flame signal is temporarily lost.
- Complete Retrofit Package: Includes the gas valve, ignition control module, wiring, and sensor probe to ensure all critical components match for a stable flame current.
Can I use the 712-017 for LP gas conversions?
No, this specific kit is engineered and factory-set exclusively for natural gas. Using it with Propane/LP gas is unsafe and will void proper operation of the internal regulator.
What happens if the pilot fails to light on the first attempt?
As a non-lockout model, the 780-715 control will continue to spark and provide gas to the pilot until rectification is successful or the thermostat call ends.
Is this kit a direct fit for 1/2" piping?
The valve features a 1/2" inlet and a 3/4" outlet. Ensure your manifold configuration or reducers are prepared to accommodate this specific sizing for a leak-free HVACR installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
