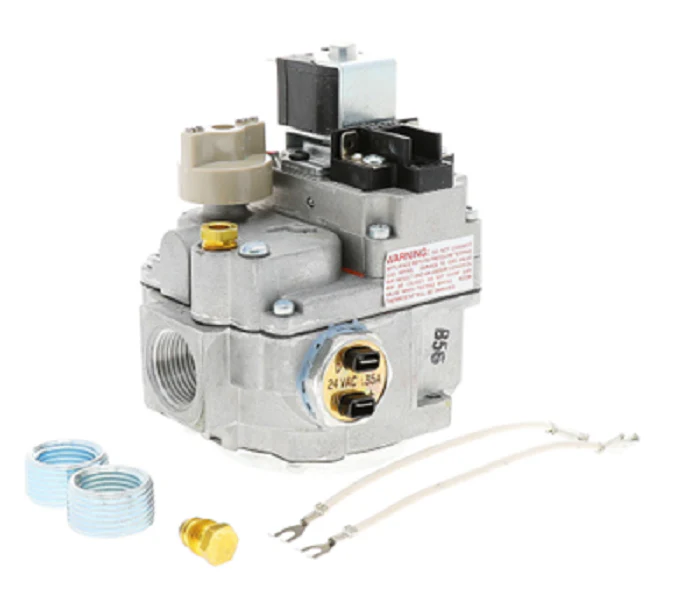

Robertshaw 700-053 Valve
The Robertshaw 700-053 is a heavy-duty, 2-stage natural gas valve engineered for high-capacity heating applications in both residential and commercial environments. This 24V gas valve features a versatile 3/4" NPT inlet and 3/4" NPT outlet, delivering a robust capacity of up to 300,000 BTU to meet the demands of large furnaces and boilers. Designed for modern ignition sequences, this 700 series unit is compatible with Intermittent Pilot (IP), Hot Surface Ignition (HSI), and Direct Spark Ignition (DSI) systems, ensuring reliable performance across diverse equipment platforms.
For the field technician, the Robertshaw 700-053 replacement offers flexible installation with its multi-position mounting capability, though it should not be installed upside down. The valve includes a factory-set pressure regulator at 1.3" W.C. for low-fire stages and can handle a maximum inlet pressure of 14" W.C. (0.5 PSI). Built for durability, the unit features built-in inlet and outlet screens, along with a pilot adjustment key and gas filter to protect internal components from debris. Professionals rely on this standard NEMA terminal gas valve for its precise regulation and high-volume flow transition.
Key Benefits
- Comes with a high 300,000 BTU capacity suitable for commercial-grade heating loads.
- Supports multiple ignition types including intermittent pilot and direct spark ignition.
- Includes a slow opening feature to ensure smooth, quiet ignition and reduced stress on heat exchangers.
- Standard 3/4" x 3/4" NPT connections allow for straightforward retrofit in existing gas lines.
- Flexible installation options allow the valve to be mounted in any orientation except inverted.
Common Questions
Can I use the Robertshaw 700-053 for LP gas?
This specific model is factory-configured for natural gas. While some 700 series valves are convertible, always verify the specific regulator kit compatibility (typically a 1751 series kit) before attempting a field conversion.
What is the proper terminal wiring for a 24V system?
For standard 24V operation, the transformer lead typically connects to the 'TR' terminal while the thermostat lead attaches to 'TH'. Ensure your transformer is at least 40VA if you are running a combined heating and cooling setup.
Why is my main burner not engaging on second stage?
Verify that the 24V signal is being sent from the board to the high-stage solenoid. If the voltage is present but the valve does not transition, check for blockages in the manifold or verify the second-stage regulator adjustment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
