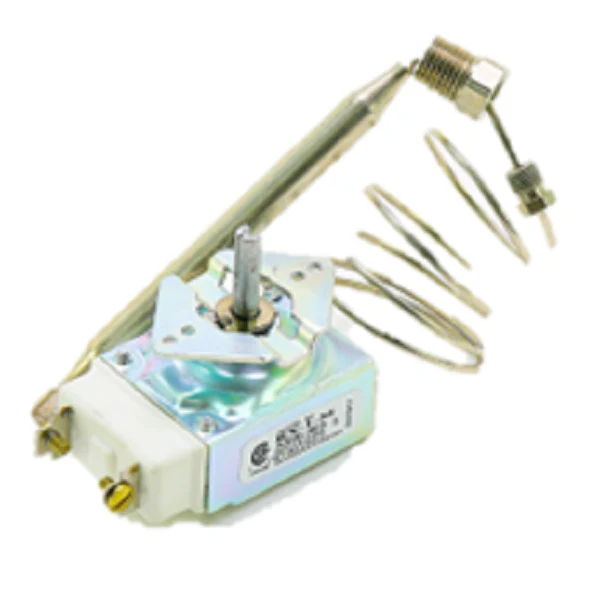

Robertshaw 5300-401 Thermostat
The Robertshaw 5300-401 Thermostat is a technician-grade RX series millivolt thermostat engineered specifically for high-demand commercial cooking applications. Operating within a precise 200°F to 400°F temperature range, this single-pole single-throw (SPST) control utilizes a hermetically sealed reed switch to ensure reliable low-current performance in harsh kitchen environments. It features a 36-inch capillary and a 3/8" x 5-5/8" nickel bulb for accurate heat sensing, designed for break-on-temperature-rise operation. The direct-acting snap-action mechanism provides a sharp, consistent response to temperature fluctuations, preventing contact arcing and maintaining sustained accuracy. Rated at 0.67 Amps at 5V DC, this unit is optimized for millivolt DC circuits found in equipment from Pitco, Frymaster, Blodgett, and Keating. The rugged design includes heavy-duty terminals and a stem length of 13/16" with the flat in the down position, making it a standard inventory item for contractors servicing commercial convection ovens and deep fryers.
Key Benefits
- Optimized for Millivolt Systems: Specifically designed for low-voltage/low-current DC applications where standard AC thermostats would fail.
- Harsh Environment Durability: The hermetically sealed switch prevents moisture, grease, and dust ingress, extending the component lifecycle in commercial kitchens.
- Wide OEM Compatibility: Serves as a direct replacement for Pitco 6012401, Frymaster 807-1692, and Imperial 319 models.
- Precise Control: Features a narrow mechanical differential typically around 8°F for tight temperature regulation.
Common Questions
- Can I use this on a 120V or 240V AC circuit? No. Using this RX series millivolt control on AC voltage will damage the internal reed switch immediately.
- What is the proper orientation for the mounting stem? The shaft flat is positioned in the "Down" orientation relative to the OFF position.
- Does this include a stuffing box? Yes, this model typically includes a 1/4" nickel-plated brass stuffing box for secure mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
