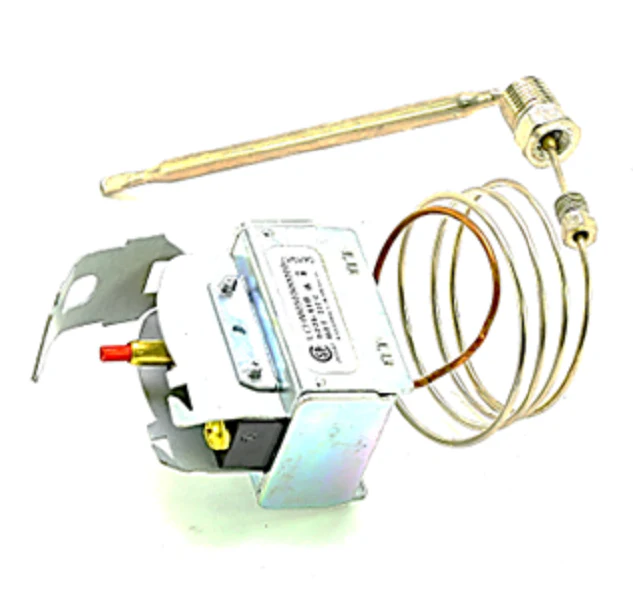

Robertshaw 5225-112 Control
The Robertshaw 5225-112 Control is a heavy-duty, factory-calibrated manual reset high limit control engineered for critical temperature protection in commercial cooking and industrial heating applications. This SPST break-on-rise switch is a trip-free safety component, meaning the circuit remains open if the reset button is depressed during an over-temperature condition, preventing accidental recycling. Designed to integrate seamlessly with pro-grade equipment from brands like Pitco, Anets, and DCS, it features a 450°F fixed setpoint and a 30-inch nickel-plated copper capillary for flexible remote sensing. The negative-biased power element diaphragm ensures the control fails safe, automatically interrupting power if the thermal element loses pressure. For technicians troubleshooting high-amperage circuits, this Robertshaw 5225-112 is rated for up to 30 Amps, making it a rugged solution for commercial fryers and electric ovens requiring high-limit thermostat reliability. Trust this 5225 series limit control for precise thermal cutoff performance in demanding environments where equipment safety is non-negotiable.
Key Benefits
- Fail-Safe Protection: Negative biased diaphragm ensures the circuit opens if the capillary is damaged or loses fluid.
- High Amperage Capacity: Rated for 30A at 250V AC, suitable for heavy-duty commercial fryer high limit applications.
- Remote Sensing Flexibility: The 30-inch capillary and 1/4" x 4-7/8" nickel bulb allow for precise placement in various heat zones.
- Manual Oversight: Requires technician intervention to reset, ensuring any overheat condition is investigated before operation resumes.
- Broad Compatibility: Often used as a direct replacement for Pitco PP10084 and DCS 13245 components.
Common Questions
What is the maximum operating temperature for the Robertshaw 5225-112?
This control is factory-set to trip at a fixed 450°F (232°C). It is non-adjustable to maintain calibrated safety standards.
Can I reset the switch immediately after it trips?
No. The temperature must typically drop approximately 50°F below the 450°F setpoint before the manual reset button will successfully latch the contacts closed.
Is this switch compatible with 480V systems?
Yes, the 5225 series carries UL ratings for 125-480V AC, though it is commonly applied in 208-240V industrial circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
