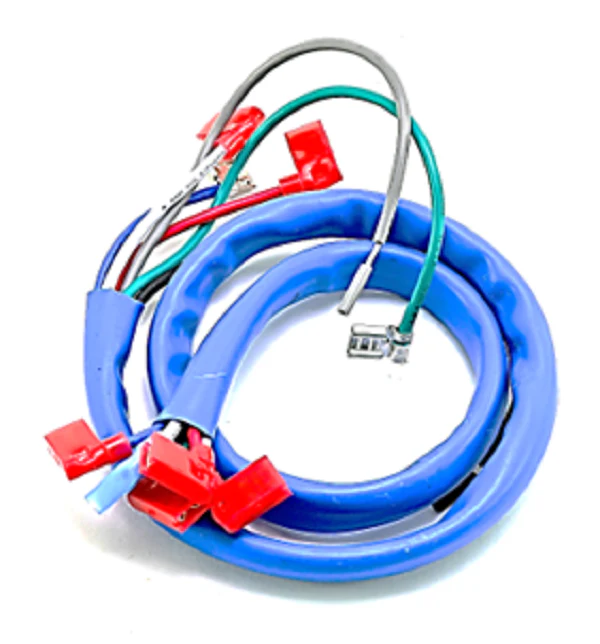

Robertshaw 1751-718 Wire Harness
As a field technician, you know that intermittent ignition failures often trace back to a worn or corroded flame sensor wire harness. The Robertshaw 1751-718 is the professional-grade solution for restoring reliable flame rectification in high-performance HVAC systems. This 6-wire replacement harness provides the critical electrical pathway between the ignition control unit and the burner assembly, enabling precise microamp signal transmission to confirm flame presence. Without a stable connection, modern flame sense systems will safely but frustratingly lock out the furnace. The 1751-718 is engineered for high-heat environments and is essential for HVAC troubleshooting when upgrading or repairing pilot ignition systems. Designed for direct compatibility with Robertshaw ignition modules, this harness ensures that your diagnostic work translates into long-term system reliability without the signal noise associated with generic wiring alternatives.
Technical Specifications and Compatibility:- Robertshaw Ignition Control Compatibility: Seamlessly integrates with SP715, SP735, SP735P, and SP745 ignition units.
- System Application: Specifically designed for 24V flame rectification ignition units and Uni-Line 712 Series pilot systems (excluding 712-005 and 712-022).
- Retrofit Versatility: Direct replacement for early production 5-wire harnesses, simplifying field upgrades.
- Flame Sense Accuracy: Shielded 6-wire configuration ensures clean microamp (uA) signaling for the flame sensor.
- Durable Construction: High-temperature insulation rated for the extreme thermal cycles found in commercial and residential burner compartments.
- Can I use this to replace an older 5-wire harness? Yes, the Robertshaw 1751-718 is designed as a direct replacement for legacy 5-wire systems, making it a versatile addition to your service truck.
- Which ignition modules work with this harness? It is primarily used with Robertshaw SP715, SP735, and SP745 series modules to provide consistent flame rectification.
- How does this harness impact flame sensor readings? By providing a clean, low-resistance path, it ensures the control board receives the correct microamp signal, preventing nuisance lockouts caused by poor wiring harness connectivity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
