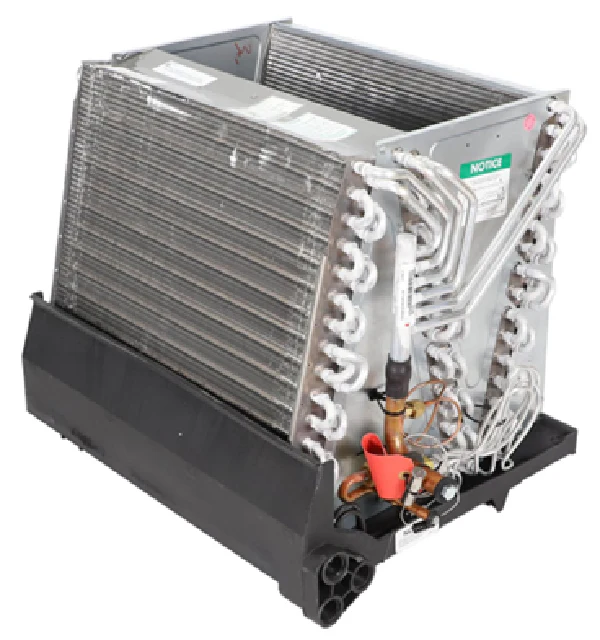

Rheem-Ruud RCHZ3617STANVU Evaporator Coil
The Rheem-Ruud RCHZ3617STANVU is a professional-grade 3-ton uncased air handler coil engineered for seamless integration into residential and light commercial forced-air systems. Optimized for R410A refrigerant, this uncased N-coil features a compact 17.5-inch design that fits standard cabinet widths, providing technicians with a versatile solution for tight plenum installations. The coil utilizes a high-efficiency TXV metering device (factory-installed) to ensure precise refrigerant flow and optimal superheat across varying thermal loads. Built with a corrosion-resistant condensate drain pan made of high-grade thermal-set plastic, the unit is designed to withstand high-static environments without the risk of rust or water carry-over. Standard 3/8" liquid and 3/4" suction copper sweat connections allow for routine brazing procedures. The bi-directional airflow configuration simplifies field installation, as it requires no internal modifications for horizontal left or horizontal right applications, making this Rheem replacement coil a primary choice for performance-critical changeouts.
Key Technician Benefits
- Optimized Heat Transfer: The N-coil design maximizes surface area within a compact height, ensuring efficient thermal exchange and reduced pressure drop.
- Field Versatility: Dual sets of 3/4" NPT drain connections and bi-directional airflow support multiple mounting orientations without extra components.
- Durable Construction: The thermal-set plastic drain pan is heat-resistant and prevents the biological growth common in metal pans.
- Internal Precision: A factory-installed thermostatic expansion valve (TXV) provides superior liquid control compared to fixed-orifice pistons.
- Leak Integrity: Every unit is factory pressure-tested to ensure vacuum stability and system cleanliness upon arrival on the job site.
Common Questions
What are the physical dimensions for fitting this into an existing plenum?
The RCHZ3617STANVU measures approximately 16.4" W x 21.4" D x 17" H, making it a drop-in match for 17.5-inch cabinet widths.
Is this coil compatible with R-22 systems?
No, this model is specifically designed and rated for R410A refrigerant and includes a dedicated R410A TXV.
Does this unit include the outer cabinet?
This is an uncased evaporator coil, which means it is designed to be installed inside an existing air handler cabinet or a custom-fabricated plenum.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping and must be shipped via trucking. Please contact us for a freight quote.
