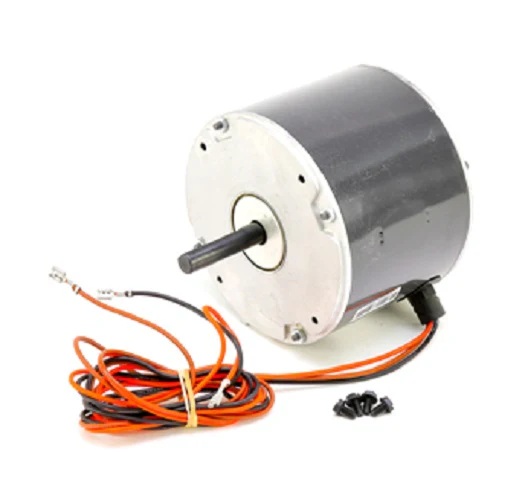

Rheem-Ruud PD512807 Motor
The Rheem-Ruud PD512807 Condenser Fan Motor is a high-performance, OEM replacement motor designed for direct-drive applications in residential and light commercial condensing units. This 1/6 HP HVAC motor operates at 825 RPM and is engineered for 208-230V, 60Hz single-phase systems. Built on a standard 48-frame chassis with a 5-5/8 inch diameter, it features sleeve bearings for quiet operation and a 1/2-inch diameter shaft. This unit is thermally protected to handle high-ambient outdoor temperatures, ensuring consistent condenser airflow and optimal system pressure. As a genuine Rheem part, it provides a precise fit for legacy and current Ruud and WeatherKing cooling equipment, maintaining the original engineering specifications for air conditioning performance and current draw.
- Exact Compatibility: Direct replacement for 51-102500-03, 10331004, and 51-101774-02, eliminating the need for mounting modifications.
- Optimized Efficiency: Low-speed 825 RPM condenser motor design reduces noise levels while providing the static pressure required for heat transfer.
- Robust Construction: Features a totally enclosed air over (TEAO) enclosure to protect internal windings from environmental debris and moisture.
Common Questions
What capacitor is required for the Rheem PD512807?
This permanent split capacitor (PSC) motor typically requires a 5 MFD / 370V run capacitor. Always check the nameplate on the original motor and ensure you use a fresh capacitor during installation to protect the new windings.
Is this motor reversible for different fan blade pitches?
The PD512807 is generally set for CCW Rotation (Lead End). When replacing a Rheem direct drive fan motor, verify the rotation direction against your fan blade pitch to ensure proper airflow through the coil.
Why is my condenser motor overheating?
Excessive heat often stems from a failed run capacitor, restricted airflow due to a dirty coil, or incorrect voltage supply. This motor includes automatic thermal overload protection to prevent catastrophic failure during high-head pressure conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
