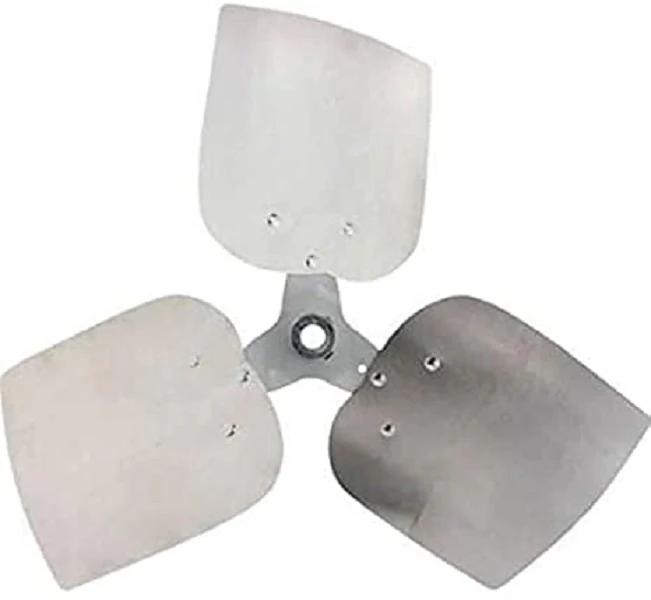

Rheem-Ruud 70-100580-08 Fan Blade
The Rheem-Ruud 70-100580-08 Fan Blade is a precision-engineered HVAC condenser fan blade designed for high-static pressure environments in residential and light commercial outdoor units. This 24-inch diameter fan blade features a 23-degree pitch and a 3-blade configuration, optimized for CCW rotation (counter-clockwise) when viewed from the intake side. Built with a 1/2-inch bore, it ensures a secure fit on standard motor shafts, maintaining critical balance to prevent vibration in condenser motors and premature bearing wear. This specific OEM replacement fan blade is essential for restoring factory-spec airflow across the condenser coils, ensuring proper heat transfer and system efficiency. When performing a Rheem AC repair, verifying the pitch and rotation is vital to avoid motor overload. This heavy-duty aluminum component is the direct replacement fan blade for Ruud units requiring exact aerodynamic profiling for sub-cooling stability.
- Optimized Airflow: The 23-degree pitch is calibrated to move specific CFM volumes required for Rheem-Ruud high-efficiency condensers.
- Durable Construction: High-grade aluminum propeller blades resist corrosion and endure rigorous cycling in harsh outdoor conditions.
- Vibration Reduction: Factory-balanced design minimizes mechanical stress on the condenser fan motor shaft and mounting brackets.
- Interchangeable Application: Fits a wide range of Rheem and Ruud models using the 1/2" hub diameter and 24" shroud clearance.
Common Questions
How do I confirm the rotation of the 70-100580-08?
This blade is rated for CCW rotation. Always determine rotation by looking at the intake side of the blade to ensure it matches your existing motor's directional requirements.
What happens if I install a fan blade with an incorrect pitch?
Installing a blade with a different pitch than the 23-degree factory spec can lead to increased amp draw on the motor, potentially causing the winding to overheat or the thermal overload to trip.
Will this blade fit any 1/2 inch motor shaft?
While it fits the 1/2 inch bore, you must also verify that the 24-inch diameter has sufficient clearance within the fan shroud and that the hub depth aligns with your motor's shaft length.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
