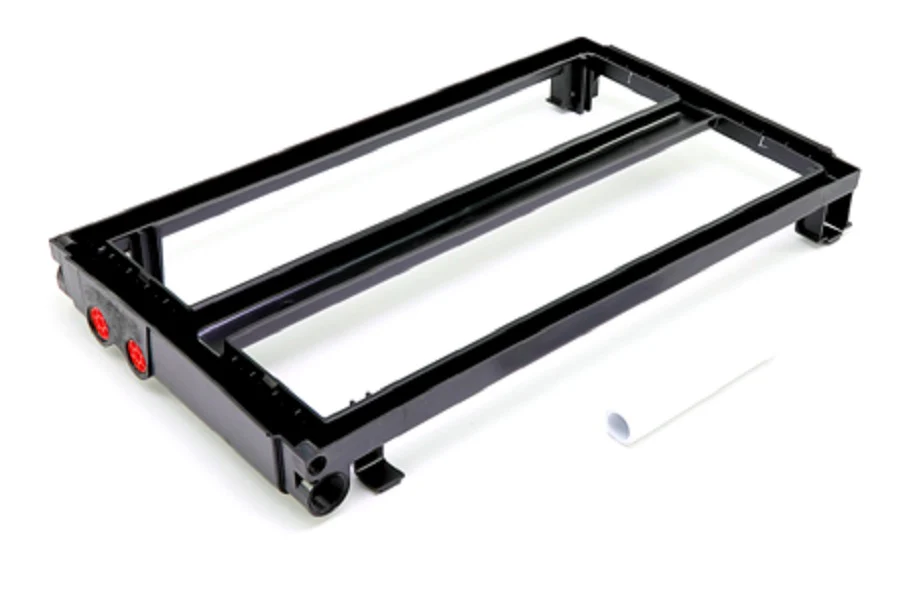

Rheem-Ruud 68-101805-81 Drain Pan
The Rheem-Ruud 68-101805-81 Drain Pan is a critical 14-inch vertical 4-row OEM replacement designed for precise fitment in specific air handler and evaporator coil configurations. Engineered for durable condensate management, this vertical HVAC drain pan features a high-heat resistant polymer construction that prevents warping and cracking under extreme plenum temperatures. This HVAC condensate pan is specifically gauged for Rheem-Ruud cooling coils, ensuring proper pitch for gravity-fed drainage to prevent standing water and biological growth. For technicians performing a Rheem evaporator coil repair, this pan provides the exact 14-inch width necessary to maintain the integrity of the cabinet seal and airflow efficiency. Utilizing OEM HVAC replacement parts like the 68-101805-81 ensures zero-clearance compatibility and helps avoid the common leaks associated with generic aftermarket alternatives. Integrating this genuine component facilitates a professional-grade AC drain pan replacement that meets original manufacturer specifications for fluid volume and drainage rates.
- OEM Compatibility: Specifically engineered for Rheem and Ruud 14-inch vertical air handlers and 4-row evaporator coils.
- High-Temperature Durability: Constructed from advanced polymers to resist thermal cycling and inhibit corrosion.
- Precision Drainage: Designed with optimized pitch to ensure complete condensate removal and minimize sludge buildup.
- Exact Fitment: Eliminates the need for field modifications, ensuring a fast and secure drop-in installation for contractors.
Common HVACR Questions:
How do I confirm the 68-101805-81 fits my specific air handler?
This drain pan is designed for 14-inch wide vertical cabinet configurations. You should verify the cabinet width and "4Row" coil designation on your unit's data plate to ensure a match.
Can this pan be used in horizontal installations?
No, this is a dedicated vertical drain pan. Using a vertical pan in a horizontal application will result in improper drainage and potential water damage to the furnace or handler cabinet.
What causes these pans to fail or leak over time?
Primary failure points include structural cracking due to age, improper leveling of the air handler, or chemical damage from aggressive coil cleaners that are not thoroughly rinsed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
