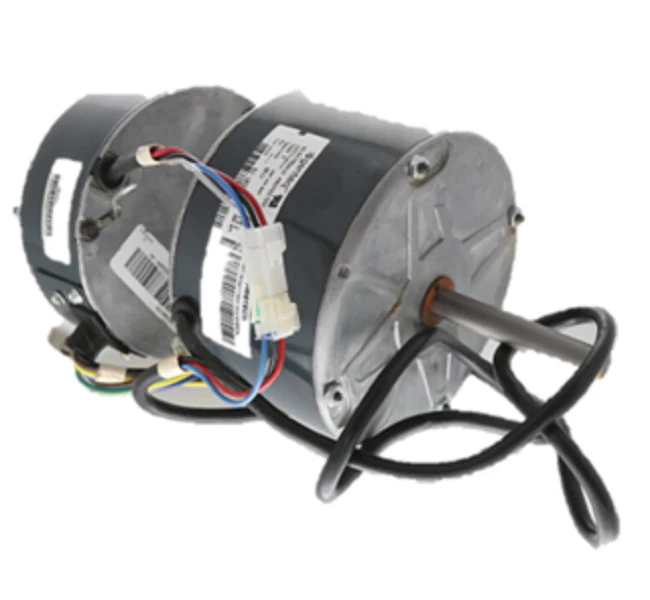

Rheem-Ruud 51-103329-01 ECM Motor
When you are in the field dealing with a failed outdoor unit, the Rheem-Ruud 51-103329-01 ECM Motor is the direct OEM replacement motor you need for 1/3 HP high-voltage applications. This variable speed condenser motor operates at 230V and is built on a 48-frame chassis, designed specifically to integrate with two-stage outdoor compressors and heat pump units like the PHP14 and RQRM series. Unlike standard PSC motors, this electronically commutated motor maintains high efficiency across its entire operating range, delivering precise airflow while cutting down on energy consumption and system noise. It features a ball-bearing design for high-duty cycles in demanding environments. Because it is an HVAC variable speed motor, it handles both high-voltage power and 24V signal calls directly, eliminating the need for external step-down transformers. For contractors, this means a drop-in fit that restores factory-spec humidity removal and temperature stability without the reliability risks of universal aftermarket alternatives.
Key Benefits- Variable Speed Efficiency: Optimized for two-stage cooling and heat pump systems to improve seasonal energy ratings.
- OEM Precision: Genuine Rheem-Ruud replacement part ensures exact mounting, shaft length, and harness compatibility.
- Quiet Operation: Advanced ECM technology reduces the "thump" of cycling and provides smoother RPM transitions.
- Durable Construction: Features high-grade ball bearings designed for the thermal stresses of outdoor condenser environments.
- Simplified Wiring: Designed to accept high voltage directly without requiring a transformer for the control logic.
Is the control module available separately for the 51-103329-01?
No, for this specific 48-frame model, the motor and integrated electronic control module are calibrated together as a single assembly. If the module has failed due to a voltage surge or moisture, the entire unit must be replaced to ensure proper communication with the system board.
Can I replace this ECM with a standard PSC motor?
While some technicians may consider a PSC conversion in emergencies, it is not recommended. This motor is part of a variable speed communication circuit; switching to a fixed-speed PSC will likely trigger system faults (especially during defrost cycles) and significantly degrade the unit's efficiency and dehumidification performance.
What are the signs of a failing 51-103329-01 motor?
Common failure points include the motor "cogging" (trying to turn but failing), intermittent operation after the module heats up, or physical bearing noise. Always verify you have 240V line power and a steady 24V signal call before concluding the motor is defective.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
