Rheem-Ruud 47-23610-19 Limit Switch

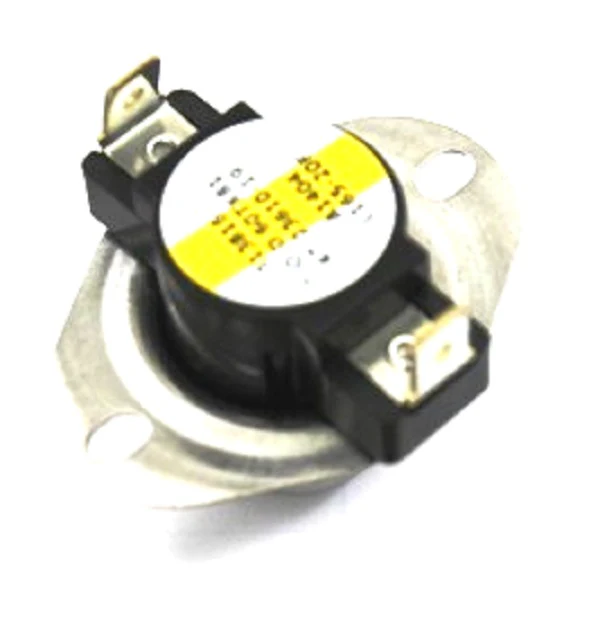

The Rheem-Ruud 47-23610-19 Limit Switch is a critical safety component designed for high-limit temperature monitoring in residential and commercial furnaces. This SPST normally closed switch features a 165-degree Fahrenheit fixed open temperature and a 145-degree Fahrenheit fixed close temperature, ensuring precise thermal cutout performance. Engineered for reliability, this auto-reset limit switch prevents heat exchanger overheating by breaking the electrical circuit when temperatures exceed safe operating limits. Coded with yellow and white color identification for rapid field identification during service calls, this general-purpose control is a standard OEM replacement part for many Rheem, Ruud, and WeatherKing air handlers and furnaces. For technicians troubleshooting furnace short cycling or limit switch tripping, verifying the L165-20 temperature rating is essential for maintaining system safety and AHRI performance standards. This robust component ensures long-term cycling durability in high-static environments.
Key Benefits for Technicians
- Precise Thermal Calibration: Fixed 165°F opening point ensures accurate protection against over-temperature conditions in the heat exchanger.
- Automatic Reset Functionality: The normally closed (NC) circuit automatically re-engages once temperatures drop to 145°F, reducing unnecessary system downtime.
- OEM Compatibility: Designed specifically for Rheem and Ruud equipment, ensuring correct fitment and electrical specifications are met without field modifications.
- Color-Coded Housing: Yellow and white identification simplifies part matching and prevents installation errors in the field.
- Durable SPST Construction: Built for high-cycle industrial use, providing a reliable furnace safety sensor solution for demanding HVACR applications.
Common Questions
What causes a Rheem limit switch to trip frequently?
Frequent tripping is often caused by restricted airflow, such as a clogged MERV-rated air filter, a failing blower motor, or undersized ductwork causing excessive static pressure.
Is the 47-23610-19 compatible with other furnace brands?
While this is a specific Rheem-Ruud replacement part, it can function in other systems if the temperature specs (165°F Open / 145°F Close) and mounting footprint match the original manufacturer requirements.
How do I test this limit switch for failure?
Using a multimeter set to continuity, check across the terminals while the switch is cool. A functioning normally closed switch should show zero resistance. If the circuit is open at room temperature, the switch has failed and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
