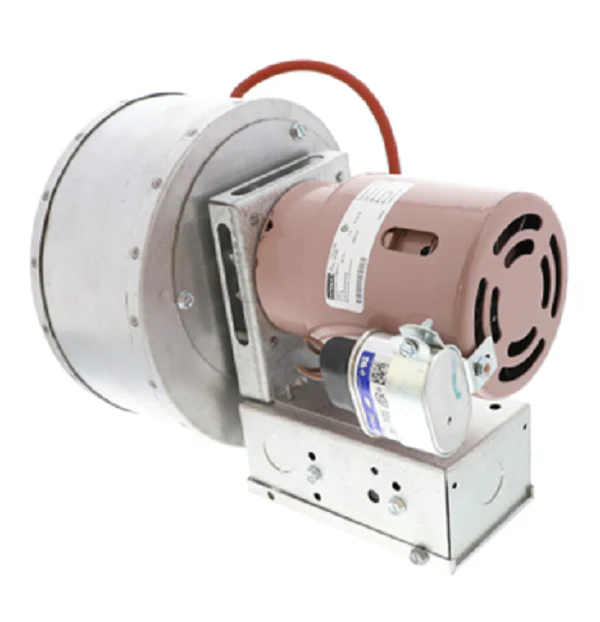

Reznor 30233 Ventor Assembly
The Reznor 30233 Ventor Assembly is a direct replacement 208V draft inducer motor designed for specific high-efficiency Reznor unit heaters. This centrifugal blower assembly is critical for maintaining the correct combustion air pressure and ensuring the safe evacuation of flue gases through the heat exchanger. Built for heavy-duty commercial applications, the 30233 inducer fan features a precision-balanced impeller to minimize vibration and bearing wear. When performing a HVAC inducer motor replacement, verify that your cabinet configuration matches the specific bolt pattern of this motor to ensure airtight sealing and optimal static pressure. This assembly integrates seamlessly with existing Reznor HVAC parts, providing reliable ignition cycles and preventing pressure switch faults common in aging atmospheric or power-vented systems. For contractors managing industrial unit heater repair, this factory-spec component ensures the system meets its original flue discharge velocity requirements.
- 208V high-torque motor engineered for consistent RPM under varying static loads.
- Durable housing construction resists corrosive combustion byproducts for extended service life.
- Maintains precise flue gas evacuation to prevent nuisance trips of the safety limit switches.
- Standardized wire harness leads for rapid integration into the unit heater control board.
Common Questions
Is the Reznor 30233 compatible with 230V systems?
This specific assembly is rated for 208V operation. While some motors are dual-rated, always check the nameplate on your existing venter motor to ensure voltage compatibility and avoid winding failure.
Does this assembly include the collector box gasket?
Standard replacement of the 30233 ventor often requires a new mounting gasket to prevent CO leakage. It is recommended to verify if your current seal is intact or if a high-temperature silicone or specified gasket is needed for this exhaust blower installation.
Why is my Reznor heater failing to ignite despite the ventor spinning?
If the inducer assembly is running but ignition fails, the system may not be reaching the required vacuum pressure to close the pressure switch. Ensure the 30233 impeller is clear of debris and the flue venting is not obstructed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
