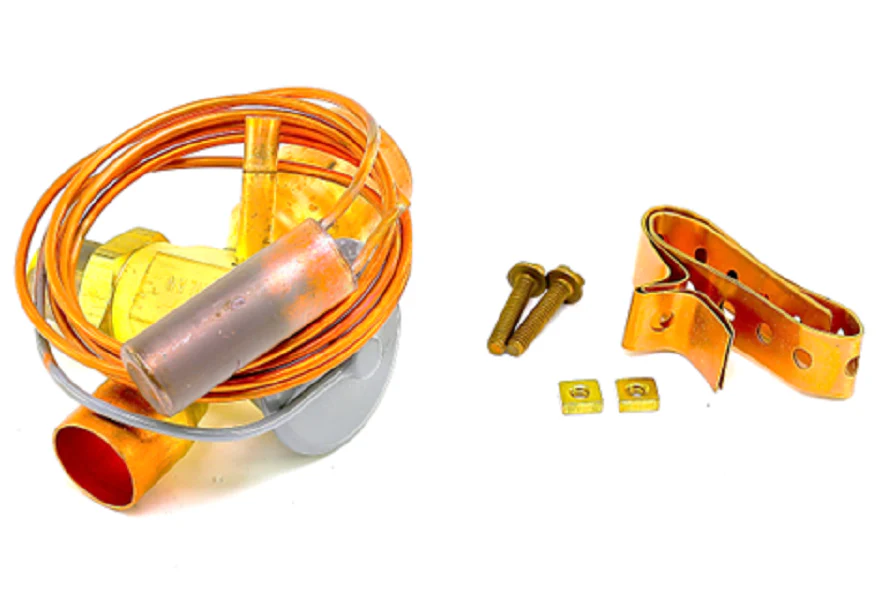

Reznor 220558 TXV
The Reznor 220558 is a high-performance thermostatic expansion valve (TXV) engineered for large-scale commercial HVAC applications, specifically designed for R-410A refrigerant systems. This BBIZE-15-ZGA model features a robust 15-ton nominal capacity, making it a critical metering component for maintaining precise superheat in RCB Modular Air Processing Systems and similar gas-fired heating units. Built with high-quality ODF connections—specifically a 7/8" inlet and 1 1/8" outlet—this valve ensures a reliable, leak-free seal in demanding environments. As an OEM Reznor replacement part, it guarantees exact dimensional compatibility and pressure drop characteristics required for 151 MBH to 241 MBH low/high capacity performance profiles. For technicians working on industrial Reznor HVAC equipment, this valve provides the necessary sensitivity to manage refrigerant flow under varying thermal loads, preventing liquid slugging and optimizing evaporator efficiency in 298/410 MBH series units.
Key Benefits
- Precise Refrigerant Metering: Optimized for R-410A to ensure maximum heat transfer across the evaporator coil.
- Heavy-Duty Capacity: Rated for 15 tons, supporting large-tonnage commercial air handler configurations.
- OEM Reliability: Direct Reznor 220558 replacement ensures no-wait installation and correct factory specifications.
- Solder Connections: Features standard 7/8" x 1 1/8" ODF fittings for secure, professional-grade brazing.
Common Questions
What are the physical port sizes for the Reznor 220558?
This valve utilizes a 7/8" ODF inlet and a 1 1/8" ODF outlet, with a 1/4" external equalizer line for accurate pressure sensing.
Is this TXV compatible with older R-22 systems?
No, the BBIZE-15-ZGA is specifically calibrated for R-410A refrigerant properties and higher operating pressures.
Which Reznor models use this specific expansion valve?
It is commonly found in RCB series modular air processing systems and high-capacity gas-fired heating units requiring 15-ton metering.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $317.10
-65%$317.10
$110.98Reznor 220558 TXV
The Reznor 220558 is a high-performance thermostatic expansion valve (TXV) engineered for large-scale commercial HVAC applications, specifically designed for R-410A refrigerant systems. This BBIZE-15-ZGA model features a robust 15-ton nominal capacity, making it a critical metering component for maintaining precise superheat in RCB Modular Air Processing Systems and similar gas-fired heating units. Built with high-quality ODF connections—specifically a 7/8" inlet and 1 1/8" outlet—this valve ensures a reliable, leak-free seal in demanding environments. As an OEM Reznor replacement part, it guarantees exact dimensional compatibility and pressure drop characteristics required for 151 MBH to 241 MBH low/high capacity performance profiles. For technicians working on industrial Reznor HVAC equipment, this valve provides the necessary sensitivity to manage refrigerant flow under varying thermal loads, preventing liquid slugging and optimizing evaporator efficiency in 298/410 MBH series units.
Key Benefits
- Precise Refrigerant Metering: Optimized for R-410A to ensure maximum heat transfer across the evaporator coil.
- Heavy-Duty Capacity: Rated for 15 tons, supporting large-tonnage commercial air handler configurations.
- OEM Reliability: Direct Reznor 220558 replacement ensures no-wait installation and correct factory specifications.
- Solder Connections: Features standard 7/8" x 1 1/8" ODF fittings for secure, professional-grade brazing.
Common Questions
What are the physical port sizes for the Reznor 220558?
This valve utilizes a 7/8" ODF inlet and a 1 1/8" ODF outlet, with a 1/4" external equalizer line for accurate pressure sensing.
Is this TXV compatible with older R-22 systems?
No, the BBIZE-15-ZGA is specifically calibrated for R-410A refrigerant properties and higher operating pressures.
Which Reznor models use this specific expansion valve?
It is commonly found in RCB series modular air processing systems and high-capacity gas-fired heating units requiring 15-ton metering.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
