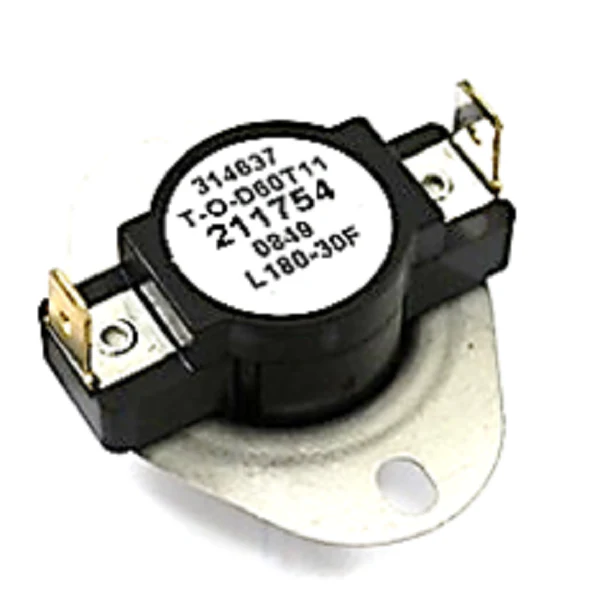

Reznor 211754 Limit Switch
The Reznor 211754 Limit Switch is a critical safety component designed for high-limit temperature monitoring in Reznor unit heaters. This OEM replacement switch features a 180°F fixed temperature setpoint with a 30°F differential, ensuring precise thermal cutout protection to prevent internal heat exchanger damage or unsafe operating conditions. Built for durability in commercial HVACR applications, this SPST automatic reset limit switch monitors discharge air temperatures and interrupts the burner circuit if thermal thresholds are exceeded. It is compatible with specific Reznor F, FE, B, and BE series units, providing a direct-fit solution for contractors maintaining gas-fired unit heaters. Reliable thermal protection switches are essential for maintaining system integrity and meeting safety compliance standards during routine unit heater maintenance.
Key Application Benefits:- Precise Thermal Calibration: Fixed 180-degree trip point ensures localized overheat protection.
- Automatic Reset Functionality: Restores circuit continuity once the temperature drops by the 30°F differential, reducing unnecessary downtime.
- OEM Compatibility: Specifically engineered for Reznor unit heater repair, ensuring correct mounting footprints and electrical terminal alignment.
- Rigid Construction: Designed to withstand the high-cycle demands and vibration common in industrial air handler environments.
What causes a limit switch to trip repeatedly in a Reznor heater?
Frequent tripping usually indicates restricted airflow, often caused by a dirty blower wheel, clogged filters, or a failing inducer motor. Ensure total static pressure is within manufacturer specs.
Can I bypass the 211754 switch for testing?
Temporary bypassing is for diagnostic purposes only by a qualified technician to confirm a faulty switch. The unit must never be left in operation without a functional high-limit safety.
Is this switch compatible with propane (LP) units?
Yes, this Reznor high limit sensor is agnostic to fuel type as it monitors air temperature within the heat exchanger cabinet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
