Reznor 209343 Vent Kit
The Reznor 209343 Vent Kit is a specialized flush wall horizontal vent kit (Option CC14) designed for separated combustion unit heaters. Purpose-built for UDAS and UDBS models in sizes 30, 45, 60, and 75, this concentric vent terminal allows for both combustion air intake and flue exhaust through a single 4-1/2 inch wall penetration. As a veteran-grade OEM Reznor replacement part, it ensures the tightest seal and correct static pressure for Category III appliances vented horizontally.
For contractors performing garage heater installation or commercial retrofits, the concentric adapter box included in this horizontal vent/combustion air kit eliminates the need for multiple wall openings, preserving the structure's exterior integrity. This kit is essential for maintaining the separated combustion cycle, protecting the burner from indoor contaminants like dust and moisture. The compact, low-profile design of the Reznor 209343 is specifically favored in residential and light commercial settings where aesthetic "flush" mounting is required to meet code without bulky external protrusions.
Key Benefits
- Streamlined Installation: Requires only one 4-1/2" building penetration for both intake and exhaust, reducing labor time and potential leak points.
- High-Temperature Integrity: Includes 450-degree high-temperature clear silicone sealant and a robust sealing gasket to ensure a gas-tight flue connection.
- Optimized Performance: Engineered as a concentric adapter to maintain precise air-to-fuel ratios, preventing heater cycling issues caused by improper venting air flow.

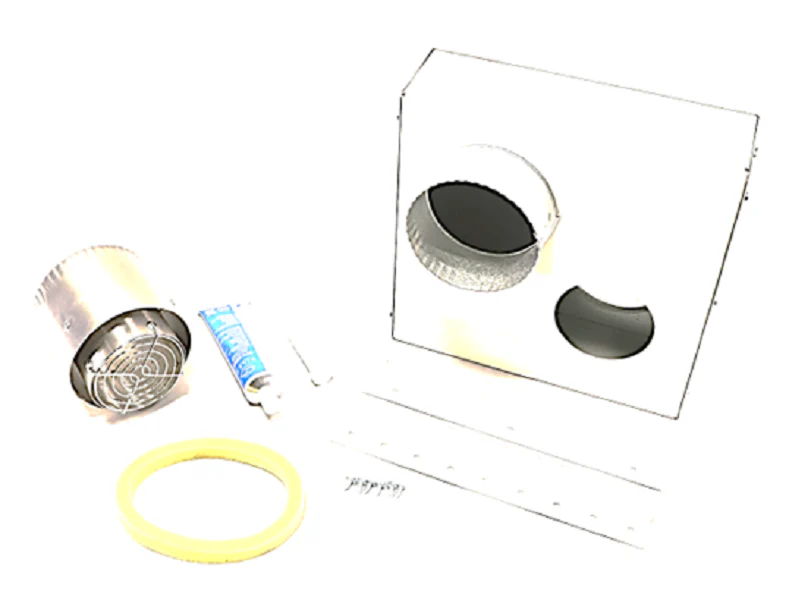

- Complete OEM Package: Contains the terminal assembly, adapter box, mounting brackets, and sheet metal screws required for a professional-grade securement.
Common Questions
Which heater models are compatible with the Reznor 209343 kit?
This kit is specifically designed for UDAS and UDBS separated combustion heaters in sizes 30, 45, 60, and 75. It is typically the standard choice for Reznor garage heaters requiring a horizontal, flush-mount termination.
Does this kit include the actual vent pipe?
The kit includes the concentric adapter and terminal assembly. The 3-inch inner vent pipe and 4-inch outer combustion air pipe that bridge the gap through the wall are typically field-supplied to match specific wall thicknesses.
What is the difference between Option CC14 and CC6?
Option CC14 (209343) is a flush-mount style designed for a cleaner, more aesthetic exterior appearance, whereas CC6 typically uses a standard protruding vent cap. Both facilitate separated combustion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
