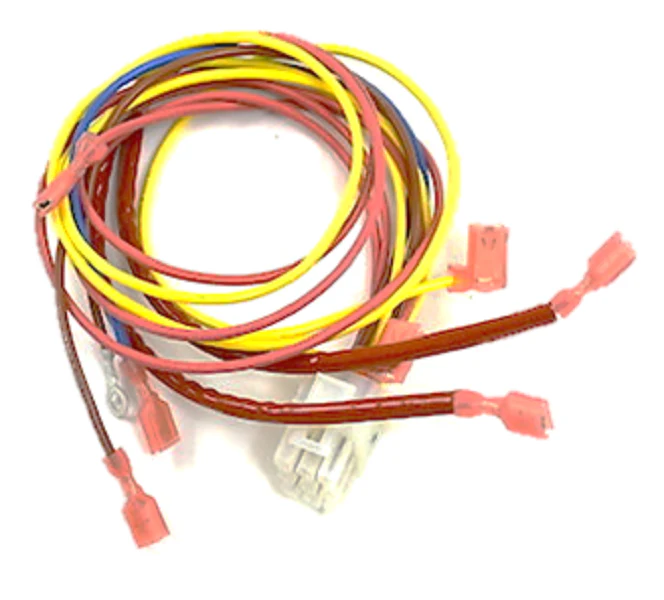

Reznor 203525 Wire Harness
The Reznor 203525 Wire Harness is a critical OEM replacement component engineered for precise electrical integration within Reznor UDBP and UDBS unit heaters. Specifically designed for 100,000 to 125,000 BTU models—including the UDBP100, UDBP125, UDBS100, and UDBS125—this harness features a 9-pin terminal connector to ensure secure signal and power distribution across the system. As a veteran-grade HVAC replacement part, it eliminates the common "no-fire" or intermittent fan operation issues caused by brittle or corroded original wiring.
Constructed by Nortek to meet demanding industrial specifications, this unit heater wiring harness provides a plug-and-play solution that maintains the integrity of the factory circuit. For technicians performing Reznor heater troubleshooting, replacing a compromised harness is standard procedure to restore reliable communication between the control board and field-installed sensors. This assembly is built to withstand the high-temperature cycles typical of gas-fired heat exchangers, ensuring consistent fan performance and long-term diagnostic stability on the job site.
Key Benefits:- Precise Compatibility: Direct-fit for Reznor UDBP and UDBS models between 100K and 125K BTU.
- Secure Interfacing: Features a factory-standard 9-pin terminal to prevent loose connections or resistance drops.
- OEM Integrity: Genuine Nortek/Reznor replacement part ensures compliance with original equipment electrical ratings.
- Durable Insulation: High-grade wiring sleeves designed to resist thermal degradation in the heater cabinet.
Which models are compatible with this harness?
This harness is specifically tailored for Reznor UDB100-125 series heaters, including UDBP100, UDBP125, UDBS100, and UDBS125 units.
Does this harness include the 9-pin connector?
Yes, the 203525 wire harness comes pre-terminated with the necessary 9-pin connector for a fast, secure fit to the existing control interface.
Can this solve ignition or fan failure codes?
If your diagnostics point to a disruption in signal continuity between the main board and the motor or gas valve, replacing a frayed or damaged harness is the recommended technical fix.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
