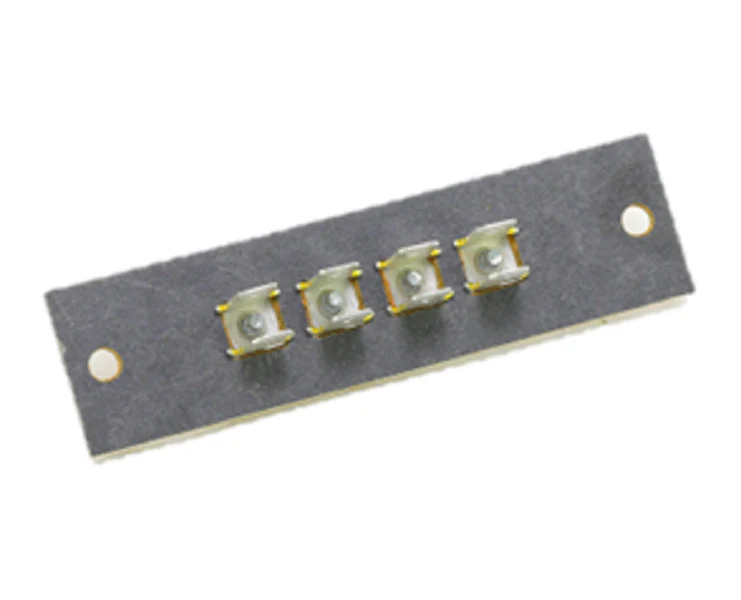

Reznor 196813 Terminal Strip
The Reznor 196813 Terminal Strip is a critical 4-pole terminal board designed for low-voltage control circuits (24V) in industrial and commercial unit heaters. Primarily utilized in Reznor UDAP, UDAS, UDBP, and UDBS gas-fired models, as well as the UBX, UBZ, UDX, and UDZ series, this OEM replacement component facilitates clean field wiring for R, G, W1, and W2 thermostat leads. As a veteran-grade HVAC part, it ensures reliable signal continuity between the external thermostat and the internal DSI integrated control board.
Constructed for high-duty cycles, the Reznor terminal block features robust barrier-style connections to prevent accidental shorting between adjacent poles. Its 4-pole configuration provides the necessary termination for standard heating and cooling stages, as well as fan-only operation. Whether you are performing a seasonal inspection or a complete control board swap, using the correct 196813 terminal strip maintains the unit heater wiring integrity and ensures the system operates within factory electrical specifications. This replacement heating part is engineered to withstand the specific thermal environment of power-vented and separated-combustion unit heaters.
Key Benefits for the Contractor
- Broad Compatibility: Drop-in replacement for Reznor UDAP, UDAS, UDBP, UDBS, UBX, UBZ, UDX, and UDZ model unit heaters.
- Standardized Wiring: Four labeled poles support standard 24V control wiring (R, G, W1, W2) for consistent thermostat connection.
- Simplified Maintenance: Facilitates quick diagnostic testing and wire replacement without disturbing the main integrated control board.
- Industrial Build: Durable construction specifically designed to resist the vibration and heat common in commercial heating applications.
Common Questions
Does this terminal strip support cooling stages on standard unit heaters?
Yes, the 4-pole design allows for the necessary connections to manage fan control and heating stages, making it compatible with standard 24V thermostat setups used in Reznor HVAC equipment.
Is the 196813 compatible with older Reznor XL series heaters?
This specific part is engineered for modern UD and UB series units. For older XL or F series models, consult the original wiring diagram as terminal spacing and mounting points may differ.
Can I use this terminal board for a 5-wire thermostat setup?
The 196813 is a 4-pole strip. For 5-wire setups requiring a 'C' (Common) terminal directly at the exterior strip, technicians typically terminate the common wire at the transformer or use a 5-pole equivalent if specified by the equipment's current revision.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $22.15
-65%$22.15
$7.75Reznor 196813 Terminal Strip
