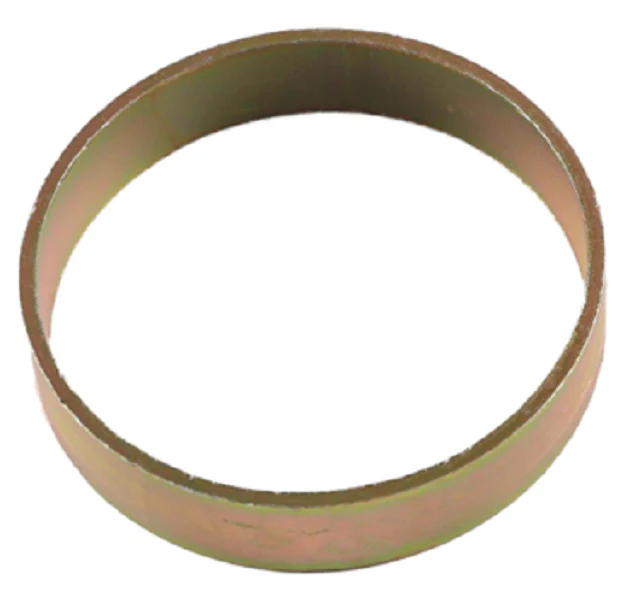

Reznor 125346 Ring
For veteran HVAC contractors servicing Reznor equipment, the Reznor 125346 Ring is a critical component for maintaining the structural integrity of the venter motor assembly. This OEM motor support ring is specifically engineered for use in Reznor SC models, including unit sizes 125–400 and larger SSCBL series. During a venter motor replacement, ensuring that the motor is properly isolated and supported prevents excessive vibration and premature bearing wear. This HVAC motor mount ring slides over the motor studs, typically alongside spiral spacers, to provide a rigid seat against the mounting plate. When technicians are performing a Reznor heater repair, reusing a compromised or warped ring can lead to flue gas leakage or mechanical misalignment. Utilizing this precision-stamped inducer motor support ensures a 5/16-inch gap between the blower wheel and the plate is maintained, meeting factory specifications for optimal airflow and exhaust performance in Reznor duct furnaces.
Key Benefits- Ensures precise alignment for venter motor and wheel assemblies in SC model series.
- Reduces harmonic resonance and mechanical vibration to protect inducer motor longevity.
- Heavy-duty OEM replacement part designed for high-temperature furnace environments.
- Direct compatibility with Reznor 125346 factory hardware and spiral spacers.
Is the 125346 ring used on all Reznor models?
No, this specific support ring is required primarily for SC models. RP and RPV series units utilize a different mounting configuration without this specific ring.
Can I reuse the old support ring during a motor swap?
While often possible if the metal is not fatigued, using a new Reznor 125346 is recommended to ensure a perfectly flat seat and prevent assembly shifts during high-RPM operation.
Does this ring include the mounting studs or spacers?
This is the individual motor support ring only. Hardware such as locknuts and spiral spacers must be retained from the existing assembly or ordered separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
