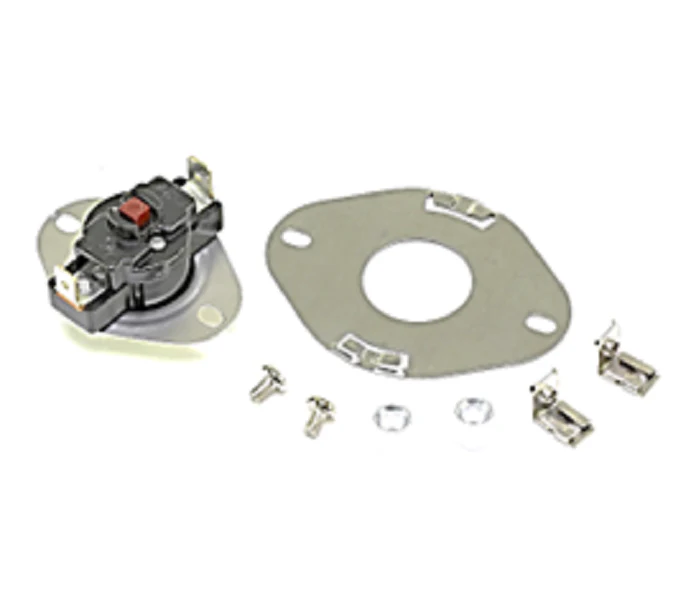

Reznor 122990 Limit
For service technicians and commercial contractors, the Reznor 122990 Manual Reset Limit Switch is a critical OEM safety component designed for heavy-duty gas-fired unit heaters. Engineered to open at 180°F, this high-limit control acts as a fail-safe against heat exchanger overheating. Unlike automatic switches, the manual reset design requires a physical inspection of the system before resuming operation, ensuring that common failure points—such as restricted airflow, blower motor failure, or blocked flue vents—are identified and corrected.
This HVAC high limit switch is built for durability in industrial environments and is a direct replacement for Reznor heating equipment. Proper installation involves verifying the temperature set point of the existing control and ensuring the bimetal sensor has clear line-of-sight to the heat exchanger tubes. Integrating a genuine Reznor 122990 ensures your repair meets factory safety standards and maintains the integrity of the unit’s thermal management system. For commercial HVAC maintenance, always carry a manual reset limit to address emergency furnace repair calls and prevent system lockout situations.
Key Benefits
- Genuine OEM Reznor part ensures precise 180°F trip settings for over-temp protection.
- Manual reset functionality forces a diagnostic check to prevent repetitive cycling under fault conditions.
- Rugged construction designed for commercial unit heaters and industrial high-temperature applications.
- Standard SPST configuration facilitates fast HVAC service and seamless electrical integration.
Common Questions
How do I test if the Reznor 122990 has failed?
Perform a continuity check with a multimeter. Since this is a normally closed (NC) switch, you should read 0 ohms when the unit is cool. If the switch remains open (no continuity) after pressing the reset button at room temperature, it requires replacement.
Why does my limit switch keep tripping even after a reset?
Frequent tripping usually indicates poor airflow. Inspect for dirty HVAC filters, failing blower motors, or obstructions in the heat exchanger. The 180-degree threshold is a security limit; if it trips, the unit is operating outside of safe heat-rise specifications.
Is this switch compatible with non-Reznor systems?
While the 180-degree open/manual reset specification is standard for many HVAC brands, you must verify the mounting bracket footprint and probe depth to ensure compatibility with your specific heat exchanger model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
