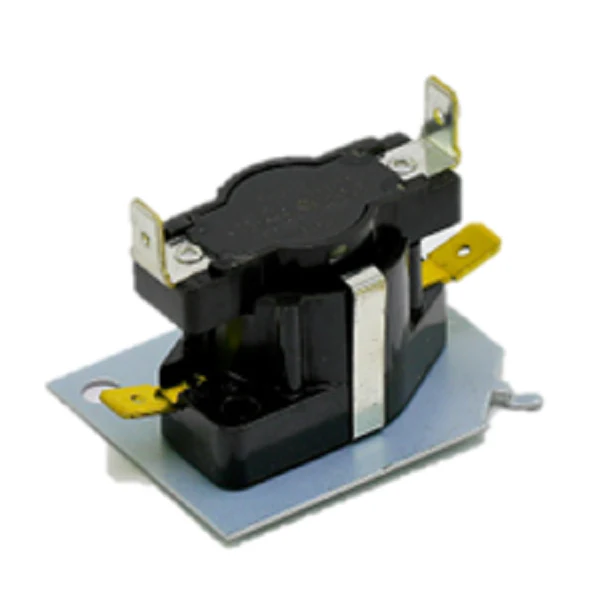

Reznor 121884 Relay
The Reznor 121884 Relay is a specialized OEM time delay relay designed for precise sequencing in industrial gas heat sections. Engineered for compatibility with Reznor PDH, RDH, and SDH series models, this 120VAC component ensures critical timing between the ignition cycle and blower activation. By managing the HVAC fan delay, it prevents the delivery of cold air into a space during the heat exchanger’s warm-up phase, while enabling a post-purge cycle to dissipate residual heat, protecting the heat exchanger from thermal stress.
This DIN rail mountable relay features a robust 10A resistive contact rating, making it a rugged solution for high-demand electrical compartments. Technicians can rely on its adjustable timing range (0.1 seconds to 10 minutes) for tailored performance in diverse automation and HVAC applications. When diagnosing Reznor heater ignition failure or erratic fan cycles, replacing an aged or sticking 121884 time delay relay is often the primary corrective step to restore system efficiency and safety protocols.
Key Benefits:- OEM Compatibility: Precision-engineered for Reznor HVAC unit heaters and furnace models (PDH, RDH, SDH).
- Adjustable Logic: Features an integrated potentiometer to fine-tune time delay settings for specific field requirements.
- Enhanced Safety: Controls the fan delay sequence to maximize heat exchanger longevity and prevent short-cycling.
- Easy Integration: Compact, DIN rail mount design simplifies installation within standard electrical enclosures.
- Why is my Reznor blower running constantly? A failed time delay relay can stick in the "closed" position, preventing the fan from shutting down after the cool-down cycle.
- Can this relay replace generic 120V timers? While it operates on 120VAC, it is specifically calibrated for Reznor gas heat sections; verify the circuit requirements before substitution.
- How do I test the 121884 delay? Check for 24V or 120V signal across the coil terminals and monitor the relay contact state changes according to your set delay interval.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
