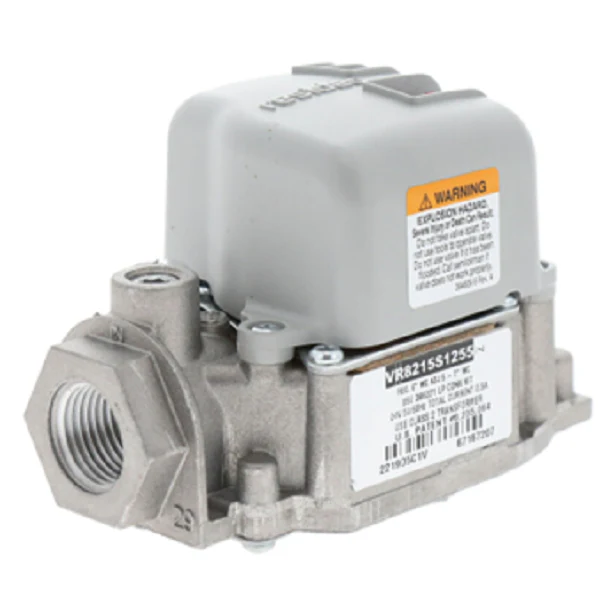

Reznor 1012520 Gas Valve
As a seasoned technician, you know that keeping a multi-stage furnace running at peak efficiency requires precise fuel regulation. The Reznor 1012520 Gas Valve is a 24V 2-stage high-performance component designed for reliable gas flow control in both residential and commercial heating units. This O.E.M. part by White-Rodgers (often cross-referenced as 36G54-224) is engineered for direct spark ignition (DSI) and hot surface ignition systems, providing a seamless transition between low and high fire modes to minimize temperature swings and optimize fuel consumption.
The Reznor 1012520 features a 1/2" NPT inlet and 1/2" NPT outlet with a fast-opening operation. While it is factory-set for Natural Gas, this unit includes a Liquid Propane (LP) conversion kit, making it a versatile stock item for service trucks. The two-stage gas valve configuration ensures that the equipment can satisfy lower heat demands quietly before ramping up to full capacity during recovery cycles. With integrated pressure taps for easy manifold pressure adjustments, this valve simplifies the commissioning process on the job site.
Key Benefits
- Dual-fuel capability with the included LP conversion kit for maximum field flexibility.
- 2-stage operation provides superior comfort control and reduced short-cycling.
- Compact White-Rodgers 36G series footprint fits tight cabinet clearances common in Reznor unit heaters.
- Built-in pressure regulator ensures stable burner performance under varying inlet pressures.
- Standard 24V AC control voltage integrates directly with most existing ignition modules and circuit boards.
Common Questions
How do I convert this valve for use with propane?
Use the included LP conversion kit, which typically consists of a spring and orifice adjustment. Always verify manifold pressure with a manometer after installation to meet manufacturer specifications.
Can I use the 1012520 for a single-stage furnace?
This is a 2-stage gas valve. While it can physically be installed, the control board must support 2-stage logic to utilize the low and high firing rates effectively.
What are the inlet and outlet sizes?
This valve features standard 1/2" x 1/2" NPT connections, compatible with most common gas line configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
