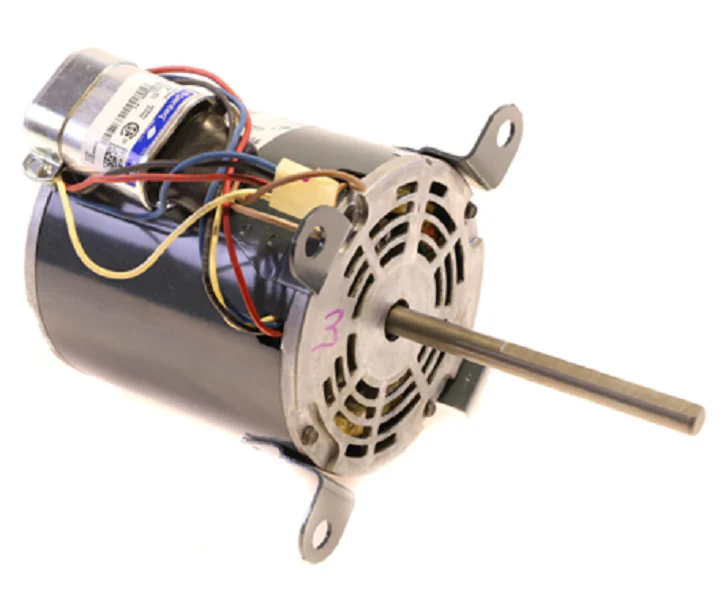

PennBarry 63750-0 Motor
For service professionals in charge of maintaining commercial ventilation systems, the PennBarry 63750-0 Motor is the direct OEM replacement motor engineered for precision fit and long-term reliability. This 1/3 HP 115V blower motor is characterized by its versatile 3-speed motor configuration, allowing for calibrated airflow adjustments at 1550, 1300, and 1050 RPM. Purpose-built to restore factory performance in PennBarry centrifugal exhaust fans, this unit is the specified drive component for SX115VSRC, DX16VSR, and FX16VSR models.
Built on a rugged 48-frame chassis with an open-drip proof (ODP) enclosure, this direct drive fan motor features ball-bearing construction to handle the thermal demands of continuous operation. The 1/2" x 5-9/16" shaft is designed for immediate integration with standard centrifugal wheels, ensuring a seamless PennBarry 63750-0 installation without the need for field modifications. With its permanent split capacitor (PSC) design and internal overload protection, this motor provides the consistent torque needed for high-static pressure applications in commercial rooftop and inline venting systems.
Key Benefits for the Contractor:- Universal Compatibility: Specifically engineered for PennBarry CentriExhausters and Fumex FX/DX series, ensuring valid performance curves.
- Multi-Speed Flexibility: Features three distinct speed taps (1550/1300/1050 RPM) for precise air balancing during system commissioning.
- Durable Construction: High-grade ball bearings and a 1.00 service factor provide high-duty cycle replacement blower motor longevity.
- Standardized Mount: Utilizes a 4-lug mount and 5.5-inch diameter body to fit original equipment housings without drilling or brackets.
- Efficient Torque: The PSC design offers a higher power-to-weight ratio and improved electrical efficiency over older shaded-pole variants.
What is the correct PennBarry 63750-0 wiring diagram for 3-speed operation?
Technicians should refer to the lead color codes on the motor nameplate. Generally, the speed taps are segregated by wire color (Black-High, Blue-Medium, Red-Low), with the common and capacitor leads clearly marked for 115V single-phase input.
Can this motor be used in both vertical and horizontal mounting positions?
Yes, the ball-bearing architecture and ODP casing allow for universal mounting in the centrifugal rooftop (DX) and inline (SX) fans for which it is rated.
Does this motor include a capacitor?
Yes, standard OEM replacement kits for the 63750-0 typically include the required 10MFD capacitor to ensure the PSC circuit starts and runs within specified amp limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
