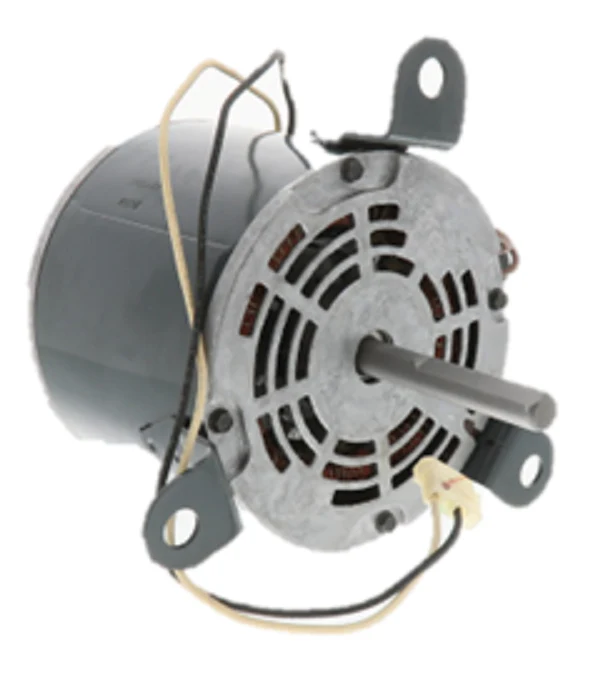

PennBarry 63749-0 Motor
The PennBarry 63749-0 Motor is a high-duty 1/4 HP OEM replacement motor engineered for precision airflow in commercial and light industrial ventilation systems. This 115V single-phase motor operates at a nominal 1725 RPM, providing the consistent torque required for centrifugal inline fans, roof-mounted exhaust units, and air handlers. Built with a NEMA 48 frame and a durable ball bearing system, this motor is designed for continuous duty-cycles in demanding HVACR environments. The 5 5/8-inch diameter housing and 1/2" x 3" shaft ensure a direct fit for PennBarry Centrex, Domex, and Fumex series fans, including popular models like the SX095Q and DX13Q.
For technicians performing field maintenance, the 63749-0 features clockwise (CW) rotation and an integrated 10 MFD run capacitor (PSC design), streamlining the installation process. Its Class B insulation and steel frame construction provide the thermal protection and structural integrity needed to withstand high-static pressure applications. Whether you are replacing a Fasco 7124-2372 or a Penn Vent HF2H047N, this motor delivers the exact electrical profile and physical footprint required to restore system-wide efficiency and static performance.
Key Benefits- Direct OEM Compatibility: Engineered specifically for PennBarry and Penn Vent systems, serving as the primary replacement for 7124-2372 and HF2H047N models.
- Enhanced Cooling Performance: The 1725 RPM 4-pole design maintains steady CFM output in both supply and exhaust configurations.
- Rugged Internal Components: Features high-grade ball bearings and a steel frame for extended lifecycle performance compared to standard sleeve bearing alternatives.
- Simplified Wiring: 115V single-phase 60Hz operation with clockwise rotation and pre-included capacitor facilitates rapid deployment in the field.
Is the 63749-0 motor a direct replacement for Fasco 7124-2372?
Yes, the PennBarry 63749-0 is the official replacement for the Fasco 7124-2372 and HF2H047N, matching all electrical specifications, shaft dimensions, and mounting requirements.
What are the shaft dimensions for this 1/4 HP motor?
This motor utilizes a 1/2-inch diameter shaft with a 3-inch length, standard for PennBarry centrifugal fans.
Does this motor include the run capacitor?
Yes, this is a Permanent Split Capacitor (PSC) motor and includes the necessary 10 MFD run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
PennBarry 63749-0 Motor
The PennBarry 63749-0 Motor is a high-duty 1/4 HP OEM replacement motor engineered for precision airflow in commercial and light industrial ventilation systems. This 115V single-phase motor operates at a nominal 1725 RPM, providing the consistent torque required for centrifugal inline fans, roof-mounted exhaust units, and air handlers. Built with a NEMA 48 frame and a durable ball bearing system, this motor is designed for continuous duty-cycles in demanding HVACR environments. The 5 5/8-inch diameter housing and 1/2" x 3" shaft ensure a direct fit for PennBarry Centrex, Domex, and Fumex series fans, including popular models like the SX095Q and DX13Q.
For technicians performing field maintenance, the 63749-0 features clockwise (CW) rotation and an integrated 10 MFD run capacitor (PSC design), streamlining the installation process. Its Class B insulation and steel frame construction provide the thermal protection and structural integrity needed to withstand high-static pressure applications. Whether you are replacing a Fasco 7124-2372 or a Penn Vent HF2H047N, this motor delivers the exact electrical profile and physical footprint required to restore system-wide efficiency and static performance.
Key Benefits- Direct OEM Compatibility: Engineered specifically for PennBarry and Penn Vent systems, serving as the primary replacement for 7124-2372 and HF2H047N models.
- Enhanced Cooling Performance: The 1725 RPM 4-pole design maintains steady CFM output in both supply and exhaust configurations.
- Rugged Internal Components: Features high-grade ball bearings and a steel frame for extended lifecycle performance compared to standard sleeve bearing alternatives.
- Simplified Wiring: 115V single-phase 60Hz operation with clockwise rotation and pre-included capacitor facilitates rapid deployment in the field.
Is the 63749-0 motor a direct replacement for Fasco 7124-2372?
Yes, the PennBarry 63749-0 is the official replacement for the Fasco 7124-2372 and HF2H047N, matching all electrical specifications, shaft dimensions, and mounting requirements.
What are the shaft dimensions for this 1/4 HP motor?
This motor utilizes a 1/2-inch diameter shaft with a 3-inch length, standard for PennBarry centrifugal fans.
Does this motor include the run capacitor?
Yes, this is a Permanent Split Capacitor (PSC) motor and includes the necessary 10 MFD run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
