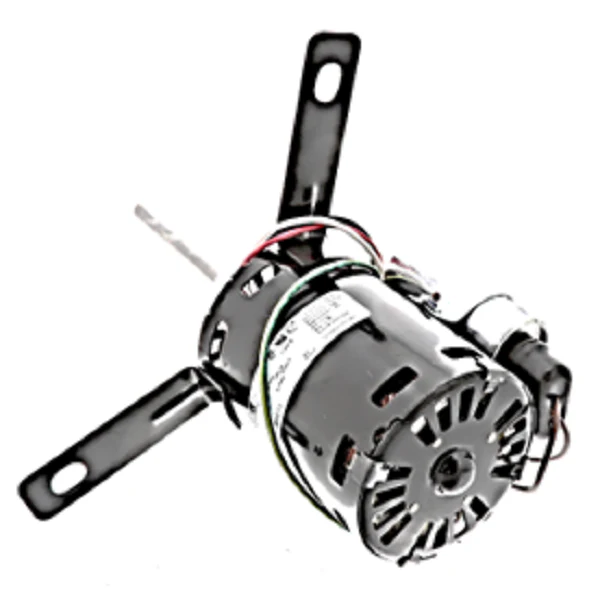

PennBarry 56346-0 Motor
For service technicians handling PennBarry ventilation units, the PennBarry 56346-0 Motor is the industry-standard direct replacement for D0346 models. This 1/4 HP blower motor is engineered for high-duty cycling in Zephyr Z10S/H cabinet fans, delivering multi-speed flexibility with a range of 1050/1550 RPM. Operating on a standard 115V single-phase circuit, this Permanent Split Capacitor (PSC) motor features an Open Drip Proof (ODP) enclosure to facilitate maximum airflow over the windings, ensuring thermal stability during continuous operation. With a 3/8-inch shaft diameter and CWSE rotation, it integrates seamlessly into existing mounting brackets, making it the preferred choice for mechanical contractors performing fast field swaps on PennBarry exhaust fans and industrial ventilation systems. This heavy-duty HVAC replacement motor eliminates compatibility guesswork and provides the torque needed for high-static pressure applications.
Key Benefits for Technicians:- Dual-Speed Performance: Supports both 1050 and 1550 RPM configurations to match specific CFM requirements in commercial ventilation.
- Direct OEM Fit: Drop-in replacement for the Fasco 7190-2904 and Universal Electric JE2K007, reducing downtime during service calls.
- Optimized Efficiency: PSC motor design reduces amperage draw (rated at 2.9A) and improves operational cost for the end user.
- Robust Construction: Precision-balanced shaft and sleeve bearings minimize vibration and extend the lifecycle of the blower assembly.
Is the capacitor included with the 56346-0?
Yes, this centrifugal blower motor is typically supplied with the necessary start/run capacitor required for proper internal phase shifting and torque generation.
Can I use this motor to replace a single-speed 1550 RPM unit?
If the mounting pattern and shaft specs align, this 2-speed PennBarry motor can be wired for high-speed-only operation or utilized with a speed controller for system upgrades.
Does this motor fit different Zephyr models?
While specifically designed for the Zephyr Z10S/H (TDA), it fits several 3.3-inch diameter bracket configurations. Always verify shaft length and diameter before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $319.80
-65%$319.80
$111.93PennBarry 56346-0 Motor
For service technicians handling PennBarry ventilation units, the PennBarry 56346-0 Motor is the industry-standard direct replacement for D0346 models. This 1/4 HP blower motor is engineered for high-duty cycling in Zephyr Z10S/H cabinet fans, delivering multi-speed flexibility with a range of 1050/1550 RPM. Operating on a standard 115V single-phase circuit, this Permanent Split Capacitor (PSC) motor features an Open Drip Proof (ODP) enclosure to facilitate maximum airflow over the windings, ensuring thermal stability during continuous operation. With a 3/8-inch shaft diameter and CWSE rotation, it integrates seamlessly into existing mounting brackets, making it the preferred choice for mechanical contractors performing fast field swaps on PennBarry exhaust fans and industrial ventilation systems. This heavy-duty HVAC replacement motor eliminates compatibility guesswork and provides the torque needed for high-static pressure applications.
Key Benefits for Technicians:- Dual-Speed Performance: Supports both 1050 and 1550 RPM configurations to match specific CFM requirements in commercial ventilation.
- Direct OEM Fit: Drop-in replacement for the Fasco 7190-2904 and Universal Electric JE2K007, reducing downtime during service calls.
- Optimized Efficiency: PSC motor design reduces amperage draw (rated at 2.9A) and improves operational cost for the end user.
- Robust Construction: Precision-balanced shaft and sleeve bearings minimize vibration and extend the lifecycle of the blower assembly.
Is the capacitor included with the 56346-0?
Yes, this centrifugal blower motor is typically supplied with the necessary start/run capacitor required for proper internal phase shifting and torque generation.
Can I use this motor to replace a single-speed 1550 RPM unit?
If the mounting pattern and shaft specs align, this 2-speed PennBarry motor can be wired for high-speed-only operation or utilized with a speed controller for system upgrades.
Does this motor fit different Zephyr models?
While specifically designed for the Zephyr Z10S/H (TDA), it fits several 3.3-inch diameter bracket configurations. Always verify shaft length and diameter before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
