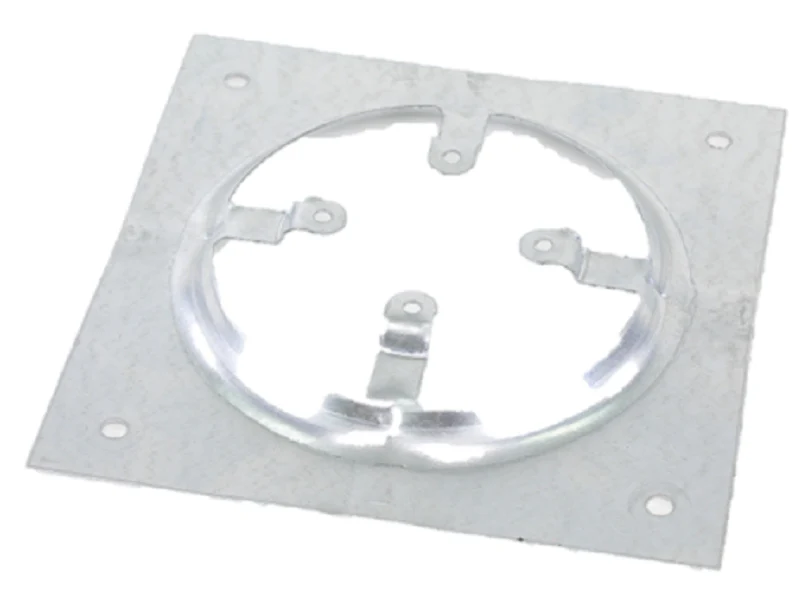

PennBarry 05597-1 Support Plate
The PennBarry 05597-1 Support Plate is a critical OEM component designed to provide a stable, rigid mounting surface for motors in high-performance ventilation systems. Engineered for precision alignment, this motor support plate is essential for maintaining the structural integrity of the drive assembly, effectively reducing vibration and preventing premature wear on mechanical components like bearings and belts. Constructed from heavy-duty, corrosion-resistant steel, the 05597-1 ensures that the motor remains securely anchored during high-torque startup and continuous operation.
For service contractors and facility managers, utilizing this genuine PennBarry replacement part is the standard protocol for restoring factory-spec performance to centrifugal fans and blowers. Proper installation of the fan motor mounting plate facilitates exact pulley alignment, which is vital for optimizing airflow efficiency and minimizing ampage draw. This plate is cross-compatible with several PennBarry series, including the Domex and DX lines, making it a versatile HVAC motor mount for diverse industrial exhaust configurations.
Key Benefits- Ensures precision motor alignment to maintain optimal drive belt tension and reduce edge wear.
- Durable steel construction provides superior vibration isolation to protect the fan housing from fatigue.
- Factory-drilled mounting patterns ensure a perfect fit for PennBarry centrifugal exhausters.
- Corrosion-resistant finish prevents oxidation in high-moisture rooftop or kitchen exhaust environments.
Is the PennBarry 05597-1 compatible with all motor frame sizes?
This support plate is specifically designed for standard NEMA frame motors typically found in PennBarry ventilation units. Always verify your specific motor's base dimensions against the plate's bolt pattern before installation.
Can this plate be used for both direct drive and belt drive fans?
While often utilized in belt-driven configurations to facilitate tension adjustment, it also provides the necessary rigid base for direct-drive motor mounting where structural support is required by the fan's design specifications.
Does this support plate include mounting hardware?
This part number refers specifically to the support plate itself. It is recommended to inspect existing bolts and washers for wear or corrosion and replace them with high-grade fasteners during the installation of the new plate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
