Peco Controls TA155-028 Stat
The Peco Controls TA155-028 is a high-performance fan coil thermostat engineered for precise climate control in commercial and industrial HVAC applications. This manual changeover thermostat is designed specifically for 2-pipe systems, allowing for seamless toggling between heating and cooling modes via the integrated Heat-Off-Cool system switch. Utilizing advanced self-configuring circuitry, this unit operates across a universal voltage range of 24VAC to 277VAC, 50/60 Hz, eliminating the need for separate inventory for different line voltage requirements. The 3-speed fan control provides specialized high, medium, and low fan speed selection to optimize air circulation in PTAC units and fan coil installations. Built with solid-state precision, it supports both local and remote thermistor sensing, ensuring reliable performance for pilot duty loads, including valves and relays. This reliable multi-speed thermostat is the industry standard for technicians seeking a durable, versatile interface for standard 2" x 4" device box mounting.
Key Benefits- Universal Compatibility: Self-configuring circuitry automatically adjusts to any input from 24V to 277V, reducing installation complexity across various job sites.
- Flexible Fan Management: Features a dedicated 3-speed fan switch (Hi-Med-Low) with the capacity for continuous or cycled operation when paired with external relays.
- Precise Temperature Regulation: Maintains a tight 1°F differential with a setpoint range of 50°F to 90°F (10°C to 32°C) for consistent occupant comfort.

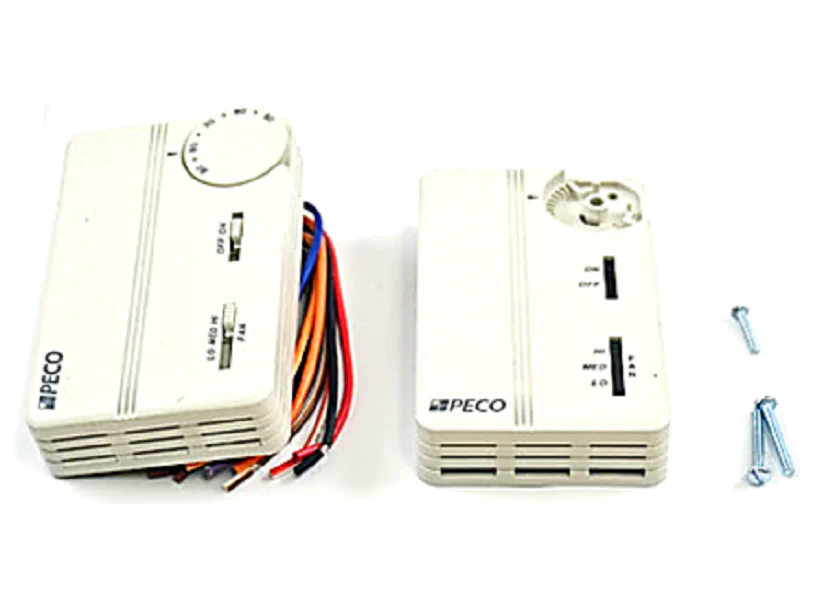

- Contractor-Friendly Installation: Supplied with both horizontal and vertical covers to match existing mechanical room or suite aesthetics without requiring extra parts.
- Heavy-Duty Reliability: Rated for pilot duty loads and features a flame-retardant PVC construction suitable for demanding environments up to 130°F ambient temperature.
Is the TA155-028 compatible with remote sensors?
Yes, this model is user-configurable for either internal unit sensing or remote thermistor sensing. To enable a remote probe, simply remove the JP-1 jumper on the circuit board.
Can I use this thermostat for a 4-pipe system?
The TA155-028 is a 2-pipe manual changeover model. While the T155 series includes variants for 4-pipe systems, this specific part is optimized for 2-pipe configurations requiring manual switching between modes.
Does this unit require a separate transformer for 277V applications?
No. The advanced internal circuitry allows for direct connection to line voltages up to 277V without the need for additional step-down transformers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
