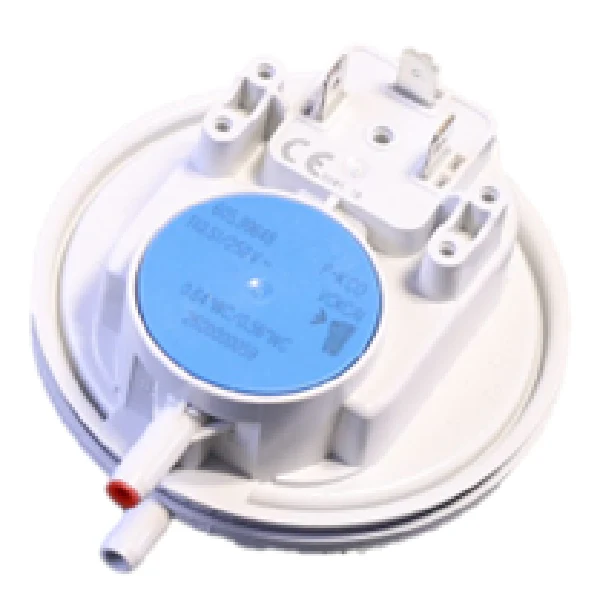

Patterson-Kelley 26-0000-0059 Pressure Switch
The Patterson-Kelley 26-0000-0059 is a high-sensitivity boiler air pressure switch engineered for precise combustion air proving in industrial HVACR systems. As a critical safety interlock, this OEM replacement part monitors the pressure differential created by the blower to ensure hazardous flue gases are properly exhausted before the ignition sequence begins. Designed for heavy-duty performance, the 26-0000-0059 pressure switch features an adjustable operating range of 25-100 PSI with tunable pull-in and pull-out points, allowing technicians to calibrate the logic specifically for Patterson-Kelley MACH boilers and other high-efficiency condensing units. The rugged construction and high electrical rating of 15A at 125/250VAC provide reliable switching in demanding mechanical environments. When troubleshooting a system lockout or an air proving fault, replacing a fatigued diaphragm with this genuine Patterson-Kelley air switch ensures the control board receives the necessary signal to proceed with the pre-purge and firing cycles, maintaining both system uptime and operational safety.
Key Benefits- Combustion Air Proving: Ensures safe ignition by verifying sufficient airflow through the heat exchanger and flue.
- Adjustable Pressure Settings: Features a 25-100 PSI range for precise field calibration to manufacturer specifications.
- Robust Electrical Output: Heavy-duty 15A rating supports reliable communication with standard 120V or 240V control circuits.
- System Protection: Acts as a fail-safe to prevent carbon monoxide buildup or burner operation under blocked flue conditions.
- OEM Compatibility: Exact-fit replacement for specified Patterson-Kelley models, eliminating the need for mounting modifications.
What are the symptoms of a failing boiler pressure switch?
Common indicators include the combustion blower running without ignition, intermittent system lockouts, or specific "Air Proving" error codes on the NURO or ENVI control interface.
Can this switch be used in both condensing and non-condensing applications?
Yes, its high-sensitivity design makes it suitable for various Patterson-Kelley boilers, provided the required pressure thresholds match the 25-100 PSI adjustable range.
How do I test the 26-0000-0059 during a service call?
Technicians should use a multimeter to check for continuity across the terminals. The switch should be normally open and close only when the blower generates sufficient differential pressure to move the internal diaphragm.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
