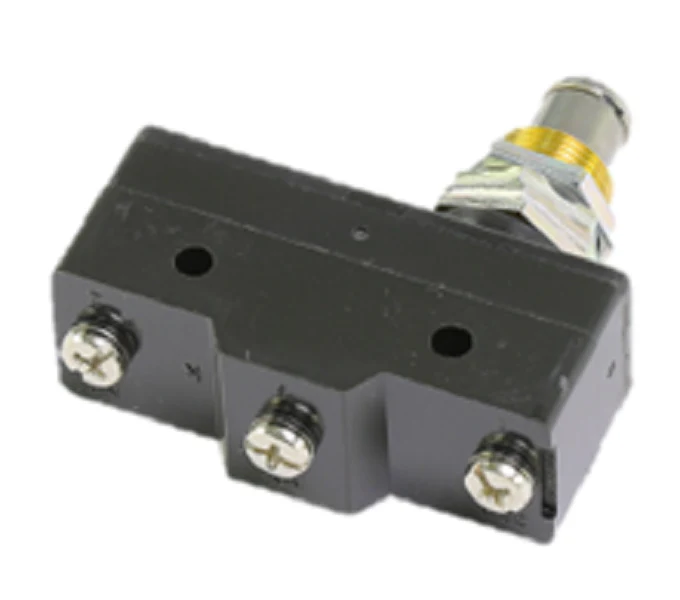

Omron Z-15GQ-B7-K Basic Switch
The Omron Z-15GQ-B7-K Basic Switch is a high-precision SPDT general purpose switch engineered for demanding industrial control and HVACR sequencing applications. Featuring a panel mount plunger and a 0.5mm contact gap, this switch provides reliable mechanical switching with an operating force of 2.45N to 3.43N. Rated for 15Amp at 250Vac, it integrates seamlessly into control panels requiring precise snap-action switching and high electrical capacity. The screw terminals with toothed washers ensure secure, vibration-resistant terminations, crucial for high-cycle environments. Designed for longevity and repeatable accuracy, this Omron basic switch is a standard-tier component for contractors needing a drop-in replacement or a robust solution for limit sensing and position detection. Its compact housing and standardized mounting allow for efficient field installation where electrical snap-action contact reliability is non-negotiable.
Key Benefits
- High switching capacity of 15A at 250Vac supports heavy industrial loads.
- Toothed washer screw terminals provide superior wire retention in high-vibration HVACR systems.
- Panel mount plunger actuator allows for precise mechanical integration and adjustment.
- Standard SPDT configuration ensures compatibility with diverse circuit logic requirements.
- Durable construction engineered for high repetitive accuracy across its mechanical lifespan.
Common Questions
How do I ensure a secure connection on the Z-15GQ-B7-K?
The integrated toothed washers under the screw terminals are specifically designed to bite into the conductor, preventing loosening due to thermal expansion or mechanical vibration.
What is the primary application for this plunger-style switch?
The panel mount plunger is ideal for limit detection or interlock safety functions where the actuation source travel is linear and requires a threaded bushing for secure mounting.
Can this switch handle both resistive and inductive loads?
Yes, the 15A rating at 250Vac provides a robust profile for common HVACR control tasks, though you should always verify the specific inductive inrush current of your motor or solenoid against the switch's technical data sheet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
