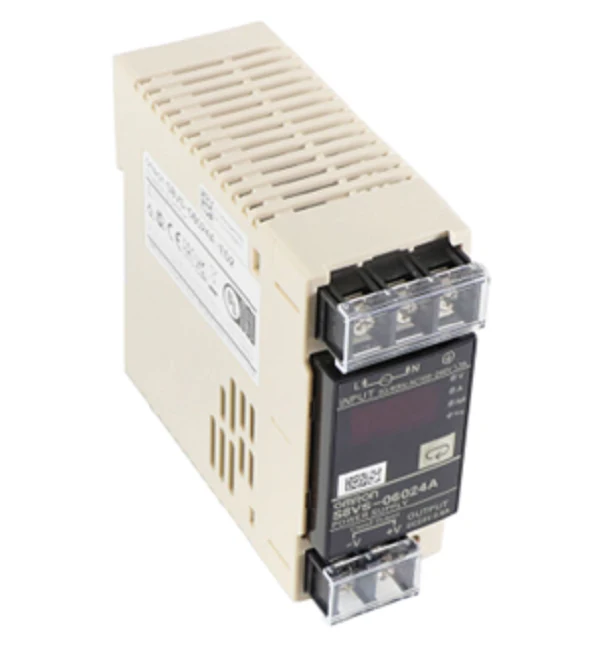

Omron S8VS-06024A Power Supply
The Omron S8VS-06024A is a high-performance 24VDC switch mode power supply built for demanding industrial environments. Delivering a reliable 60W output capacity and 2.5A rated current, this unit is engineered for precision and longevity. Unlike standard power supplies, the S8VS-06024A features an integrated 7-segment LED display and a maintenance forecast monitor, providing technicians with real-time visualization of operating status, including peak hold current and remaining service life in years. This proactive diagnostic utility allows contractors to schedule service before a failure occurs, significantly reducing downtime in critical HVACR control systems.
Designed with a universal input voltage range of 85-264Vac, this DIN rail mount power supply integrates seamlessly into existing panels. It is UL Class 2 rated, ensuring safe power distribution in automation circuits. The screw terminal block design provides secure wire terminations, while the ultra-compact footprint saves valuable rail space. With built-in overvoltage and overload protection, the unit maintains stable 24V delivery even under fluctuating line conditions, making it an essential component for industrial automation and control panel power applications.
Key Benefits- Predictive Maintenance: Integrated maintenance forecast monitor displays remaining life years to prevent unexpected system shutdowns.
- Diagnostic Display: 3-digit LED indication monitor provides instant feedback on output voltage, current, and peak hold values.
- Safe Operation: UL Class 2 compliant, ensuring enhanced safety and simplified circuit design in specialized electrical installations.
- Flexible Installation: Compact DIN rail design with a universal AC/DC input range (85-264Vac / 80-370Vdc) for global compatibility.
- Robust Protection: Features automated reset for overload protection and latching overvoltage protection to shield downstream 24V components.
How do I reset the overvoltage protection on the S8VS-06024A?
If the overvoltage protection is triggered, disconnect the input power for at least three minutes before restoring power to allow the internal circuits to reset.
What does the maintenance forecast display actually show?
The display alternates between output voltage, current, and the "maintenance forecast," which calculates the remaining service life of the internal electrolytic capacitors based on operating temperature and load.
Can this power supply be used with an inverter output?
No, using an inverter output may cause an internal temperature rise that leads to component failure; standard grid power or a clean DC source is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
