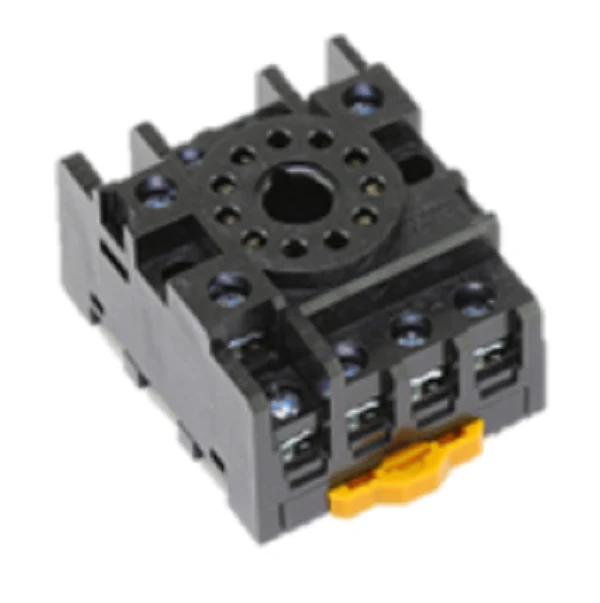

Omron PF113A-E Relay Socket
The Omron PF113A-E Relay Socket is a fundamental component for industrial control panels, specifically designed to accommodate the Omron MK series general-purpose relays. This 11-pin relay socket features a robust 3-pole configuration, supporting 3PDT (Triple Pole Double Throw) switching requirements. Built for heavy-duty applications, it manages a 10A rated current at 250VAC, ensuring reliable power distribution in motor control and automation circuits. The unit is optimized for DIN rail mounting but also supports surface mounting, providing field technicians with the flexibility needed during onsite integration. Utilizing screw terminals with captive wire clamps, the PF113A-E ensures secure connections even in high-vibration environments. The compact design facilitates high-density mounting, while the finger-protective construction improves safety during routine maintenance. Whether you are replacing a legacy base or building a new control system, this socket delivers the mechanical stability and electrical integrity required for industrial-grade track mounted sockets.
Key Benefits- MK Series Compatibility: Purpose-built for Omron MK 3-pole relays (3PDT), ensuring a precise mechanical fit and optimal electrical contact.
- Flexible Installation: Dual-purpose base supports standard 35mm DIN rail or direct surface mounting for diverse enclosure layouts.
- High Current Capacity: Rated for 10 Amps, making it suitable for demanding industrial loads and power management tasks.
- Secure Wiring: Integrated screw terminal design with captive clamps prevents wire pull-outs and simplifies field termination.
- Safety Compliant: Features finger protection and meets UL/CSA standards for professional-grade electrical installations.
What relays are compatible with the PF113A-E?
This socket is specifically engineered for 11-pin round relays, most notably the Omron MKS series (3PDT models). It provides the necessary 11-position interface for 3-pole switching sequences.
Can I use hold-down clips with this socket?
Yes, it is compatible with standard PFC-A1 hold-down clips, which are recommended for high-vibration environments to ensure the relay remains seated.
Is this socket suitable for motor control circuits?
Absolutely. With a 10A rating and 250V insulation, it is a standard choice for industrial machine control and HVACR interlocking systems.
