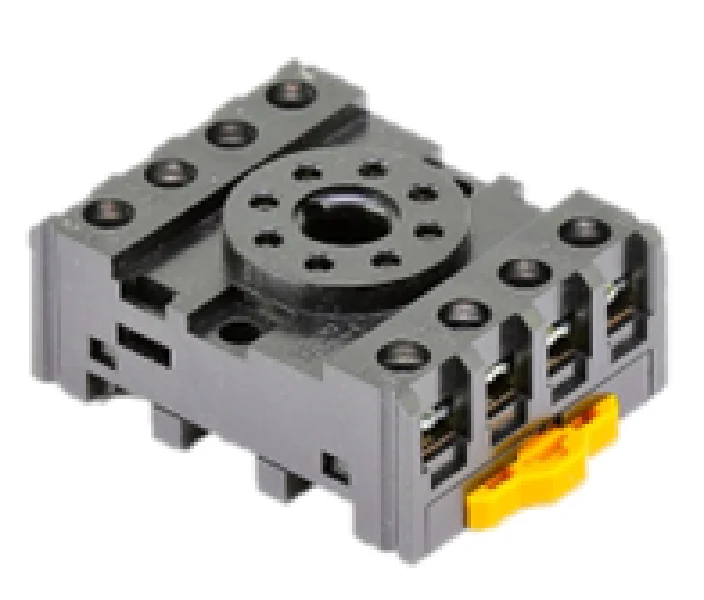

Omron PF083A-E Socket
The Omron PF083A-E Socket is a mission-critical 8-pin track-mounted socket designed for high-reliability interface applications in industrial control panels. Engineered for use with G3F, G3FD, and MK-S series relays, this DIN rail mount socket features integrated finger protection to meet IP20 safety standards, reducing the risk of accidental contact during live troubleshooting. The screw terminal design accommodates high-torque wire termination, ensuring a low-resistance connection that maintains signal integrity even in high-vibration environments. For contractors managing HVACR control wiring, the compact footprint of the PF083A-E allows for maximum density on the rail without compromising thermal dissipation or access to terminal points.
Key Benefits for Field Installations- Universal DIN Rail Compatibility: Standard track-mounting allows for rapid installation and interchangeability within standard control enclosures.
- Enhanced Safety Compliance: The finger-safe terminal architecture aligns with modern safety protocols, protecting technicians during maintenance cycles.
- Robust Terminal Retention: Heavy-duty screw clamps prevent wire pull-out, a common failure point in 8-pin relay base applications.
- Dielectric Strength: Designed to withstand voltage spikes and rigorous duty cycles common in industrial motor control circuits.
What is the maximum torque rating for the terminal screws?
The terminals are designed for a standard tightening torque of 0.78 to 1.18 N·m to ensure a secure electrical connection without stripping the threads.
Can the PF083A-E be used with third-party 8-pin round relays?
While optimized for Omron MK-S series, it is compatible with standard 8-pin circular (octal) relays, provided the pin configuration and amperage draw align with the socket’s 10A rating.
Is this socket suitable for high-vibration HVAC units?
Yes, when used with the appropriate hold-down clips, the PF083A-E provides a stable platform that resists mechanical loosening in demanding environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
