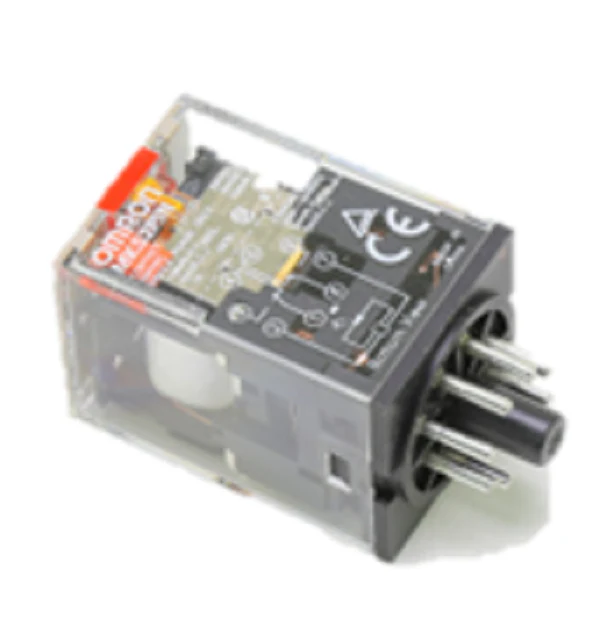

Omron MKS2PIN-AC24 Relay
The Omron MKS2PIN-AC24 is a professional-grade general purpose relay engineered for high-reliability industrial control and HVACR sequence circuits. As a veteran technician knows, the MK-S series has been a staple in control panels for decades due to its robust 8-pin octal base design and consistent performance. This DPDT relay (Double Pole Double Throw) features a 24Vac coil and is rated for a 10 Amp switching capacity, making it a versatile choice for both power relays and signal-level switching.
Equipped with a built-in LED indicator and a mechanical indicator, this unit provides immediate visual confirmation of coil energization and contact state. The integrated lockable test button allows contractors to manually override the circuit for rapid troubleshooting and system testing without external jumpers. Its silver tin indium (AgSnIn) contacts offer superior arc resistance and electrical relay longevity. This plug-in relay is a direct replacement for legacy Super MK models, maintaining the same terminal arrangement and footprint to minimize downtime during field maintenance.
- Manual Override: The lockable test button enables quick circuit verification and sequence testing for technicians.
- High Switching Capacity: Rated for 10A at 250VAC/30VDC, providing reliable power handling for motor starters and actuators.
- Visual Diagnostics: Dual indicators (LED and mechanical) simplify control panel troubleshooting and status monitoring.
- Seamless Integration: Standard 8-pin plug-in terminals ensure compatibility with existing PF083A-E or equivalent sockets.
- Durability: Rugged electromagnetic relay design with RoHS compliance and UL/CSA certifications for industrial environments.
Common Questions
What is the difference between the MKS2P and MKS2PIN models?
The "I" signifies the inclusion of the lockable test button, while the "N" indicates the built-in LED indicator. Both features are standard on this model for easier field diagnostics.
Can I use this relay for DC loads?
Yes, the Omron MKS2PIN-AC24 is rated to switch up to 10A at 30VDC, though its coil must be powered by a 24Vac source.
Is a socket included with this relay?
No, this is the plug-in relay unit only. It is designed to fit standard 8-pin octal bases typically found in existing industrial enclosures.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
