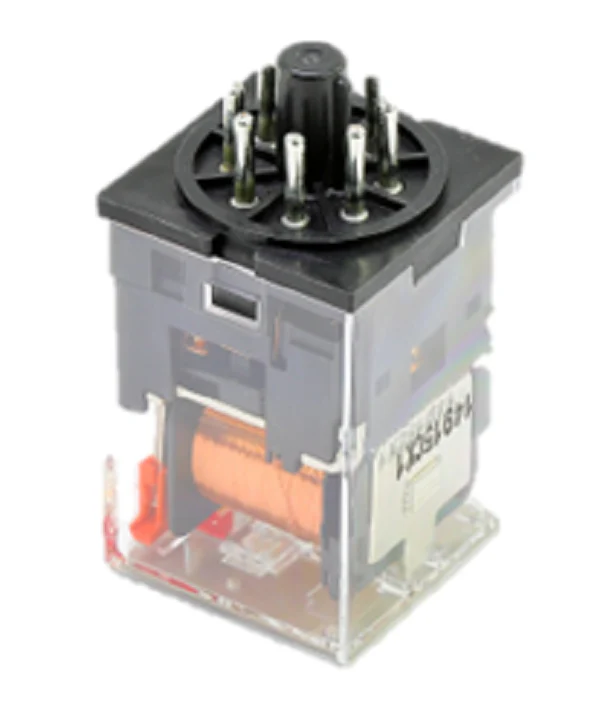

Omron MKS2PI-AC240 Relay
The Omron MKS2PI-AC240 is a heavy-duty DPDT power relay engineered for reliable performance in demanding industrial and HVACR control circuits. This 8-pin octal relay features a 240Vac coil and high-capacity 10A resistive contacts, making it a standard choice for motor control, sequence switching, and panel automation. Built with an integrated mechanical indicator and a lockable test button, this unit allows technicians to manually verify contact state and circuit continuity without energizing the coil. The silver alloy contacts ensure long-term electrical durability and low contact resistance, while the plug-in terminals facilitate quick replacement in compatible 8-pin sockets. Designed to meet UL and CSA standards, the MK-S series relay provides consistent general-purpose switching across a wide ambient temperature range, ensuring your systems remain operational under heavy duty cycles.
Key Benefits- Dual Contact Control: The DPDT contact configuration allows for the simultaneous management of two independent electrical paths.
- Manual Diagnostics: Features a lockable test button and mechanical operation indicator for rapid field troubleshooting.
- High Current Capacity: Rated for up to 10 Amps at 250Vac, providing robust power handling for HVACR components.
- Standardized Fit: 8-pin plug-in terminal design ensures compatibility with standard octal relay sockets for easy retrofitting.
- Durable Construction: Built to MK-S series specifications with materials that resist wear and sustain consistent conductivity.
Is the lockable test button safe for continuous use?
The lockable test button is designed for temporary circuit testing and maintenance checks. It allows a technician to temporarily force the contacts into an energized state to verify downstream component functionality.
What is the difference between the MKS2PI and standard MK series relays?
The "I" in the MKS2PI-AC240 part number signifies the inclusion of the mechanical indicator and the lockable test button, providing superior Diagnostic capabilities compared to standard base models.
Can I use this for DC switching?
While optimized for a 240Vac control voltage, the 10A contacts are rated for both AC and DC loads; however, you must adhere to the 30Vdc maximum rating for DC power switching applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
