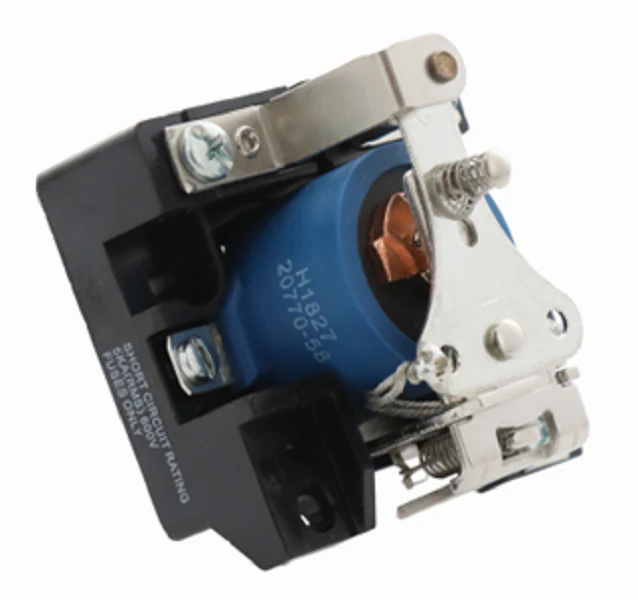

Omron MGN1C-AC120 Relay
The Omron MGN1C-AC120 Relay is a heavy-duty electromechanical component engineered for high-current switching in demanding HVACR and industrial environments. This SPDT (Single Pole Double Throw) power relay features a robust 30A current rating at 240VAC, making it a reliable choice for managing inductive motor loads and resistive heating elements. Built with a Class F coil insulation system rated for 155°C (311°F), the MGN series is designed to withstand the high ambient temperatures common in furnace rooms and rooftop units. Its 120V coil is molded in DuPont Rynite for superior environmental protection against moisture and debris, satisfying the rigorous standards required for panel-mount applications. With a Short Circuit Current Rating (SCCR) of 5kA at 600VAC and silver alloy contacts, this relay provides a durable interface for 1.5 HP motor loads, ensuring consistent performance throughout its 100,000-cycle electrical life. This is a field-proven heavy duty general purpose relay for field replacements and new control panel builds.
Key Benefits:- High-Capacity Switching: Rated for up to 30A at 240VAC/28VDC, ideal for switching 120V motor loads and high-wattage resistive circuits.
- Durable Construction: Features silver alloy contacts and terminals riveted to the base for mechanical stability under vibration.
- Thermal Resilience: The Class F insulation and DuPont Rynite molded coil prevent thermal breakdown in high-heat HVACR environments.
- Standardized Mounting: Designed for straightforward panel mount or chassis installation with secure screw terminals for reliable field wiring.
What is the maximum horsepower this relay can handle?
The Omron MGN1C-AC120 is UL rated for up to 1.5 HP at 120VAC and 2 HP at 240VAC, making it suitable for blowers, pumps, and compressors.
Can this relay replace a standard 30A contactor?
Yes, provided the coil voltage matches and the SPDT contact configuration meets your circuit requirements. It is often used as a "stand-alone" alternative for heavy-duty switching where a full contactor may be oversized.
How do I confirm the coil is properly energized?
Measure for 120VAC across the coil terminals. The MGN1C-AC120 is designed to pull in at approximately 102VAC, ensuring reliable operation even during minor voltage drops.
