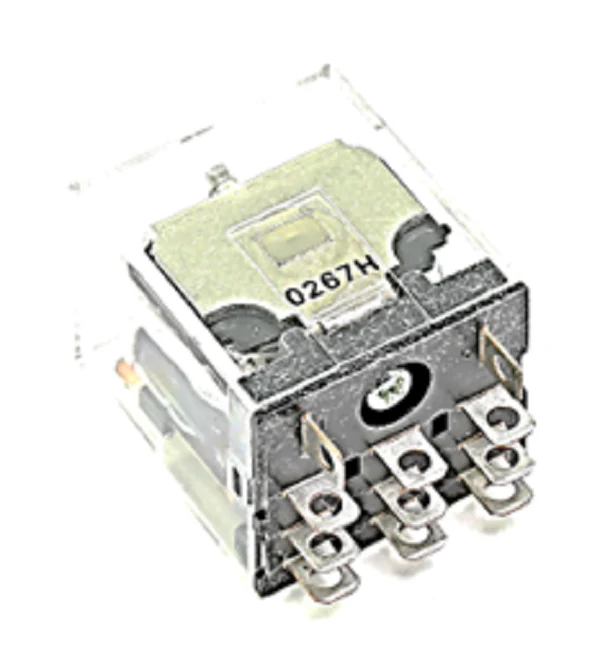

Omron LY3-AC24 Relay
The Omron LY3-AC24 is a robust 3PDT general purpose relay engineered for heavy-duty switching in industrial HVACR and automation control circuits. Operating on a 24Vac coil voltage, this triple-pole double-throw relay features a 10A contact rating, making it a reliable choice for managing inductive loads and multi-circuit logic. Designed with plug-in/solder terminals, it offers versatile installation options whether you are utilizing a matching PTF-series socket or hardwiring directly for a permanent fix. The integrated standard bracket mounting ensures secure mechanical stability in high-vibration environments. This industrial power relay is often the go-to for technicians looking to optimize control panel wiring and ensure long-term electromechanical relay performance. Its high dielectric strength and arc barriers help prevent cross-talk between poles, ensuring clean signal isolation across all three poles during high-cycle operations.
Key Benefits for Technicians:- Triple-Pole Versatility: The 3PDT configuration allows for simultaneous control of three separate circuits from a single signal.
- Durable Construction: Built to withstand the rigors of HVAC mechanical rooms with a high mechanical service life.
- Easy Retrofitting: Compatible with standard 11-pin sockets for rapid field replacement and reduced system downtime.
- Flexible Termination: Dual-purpose plug-in/solder terminals accommodate various field installation requirements.
What is the maximum switching capacity for the Omron LY3-AC24?
This relay is rated for a 10A resistive load at 110Vac/24Vdc, making it ideal for switching solenoids, contactors, and small motor loads.
Can I use this relay in a high-temperature environment?
Yes, the LY3 series is rated for ambient operating temperatures ranging from -25°C to +55°C, suitable for standard industrial control enclosures.
Does this unit come with a status indicator?
This specific model is the standard version; always verify the specific part suffix if you require an integrated LED indicator or surge suppression diode.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
