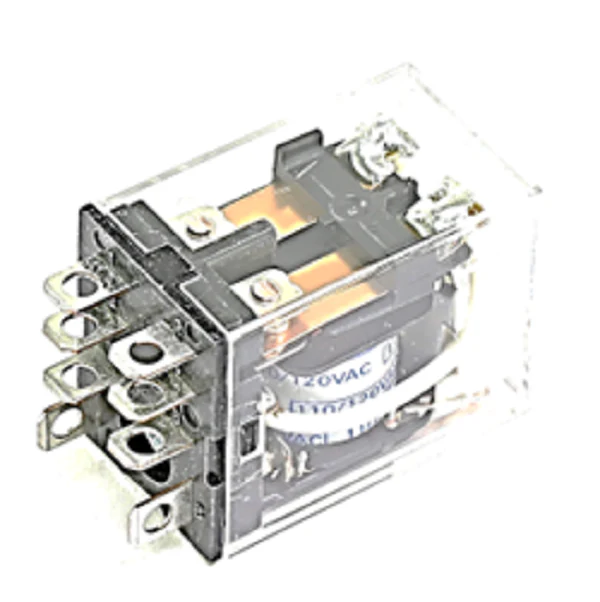

Omron LY2N-AC110/120 Relay
For mid-range power switching in demanding HVACR control circuits, the Omron LY2N-AC110/120 is a veteran-preferred DPDT relay designed for reliable inductive and resistive load management. This 110-120Vac general purpose relay, part of the proven LY Series, provides a 10A contact rating and is built to handle the rigorous duty cycles of fan motors, sequence controllers, and small compressors. The 8-pin plug-in configuration allows for rapid installation into PTF08A or PTFZ08E sockets, while the integrated LED indicator simplifies field diagnostics by providing instant status verification of the coil. Engineered with silver alloy contacts and an arc barrier to prevent cross-phase tracking, this power relay ensures stable switching under high-vibration conditions typical in refrigeration equipment. Whether you are performing a retro-fit or a new panel build, this compact electromechanical relay is the industry standard for 120V control voltage applications requiring durable double-pole, double-throw switching.
Key Benefits- 10A Contact Rating: Versatile enough for both auxiliary control signaling and direct fan motor switching.
- LED Operation Indicator: Drastically reduces troubleshooting time by allowing technicians to confirm coil energization at a glance.
- Arc Barrier Protection: Prevents flashover between contacts, extending component life in high-power switching scenarios.
- DPDT Configuration: Allows for simultaneous control of two independent circuits from a single 120V AC signal.
- Dual Termination Design: Compatible with both plug-in sockets and direct solder terminals for flexible mounting options.
What is the correct socket for the LY2N-AC110/120?
This relay is designed for use with an 8-pin socket. The most common technical matches are the PTF08A-E (DIN rail/screw mount) or the PTF08A series sockets, allowing for secure plug-in mounting.
Does this relay include a manual test button?
The LY2N model features a transparent housing and an LED indicator for visual confirmation; however, unlike the LY2-D series, this standard "N" version does not typically include a physical mechanical test latch.
Can I use this for 24V control circuits?
No. The Omron LY2N-AC110/120 has a 120Vac coil. Applying 24V will not yield enough pick-up voltage to close the contacts. Always verify your control voltage matches the coil rating before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
