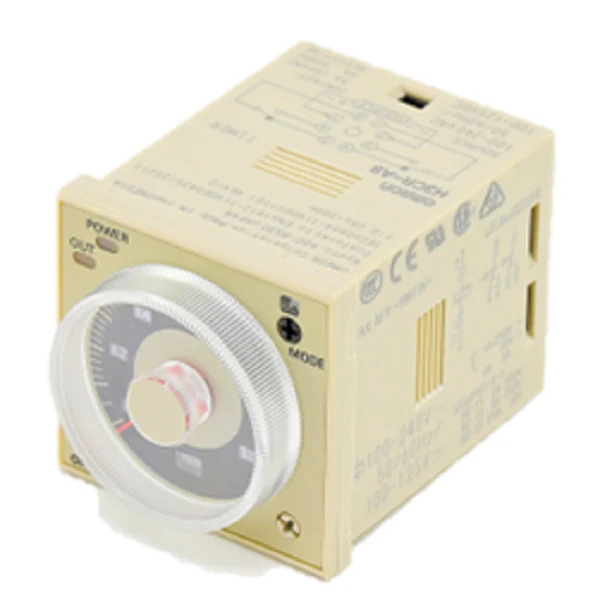

Omron H3CRA8AC100240DC10 Relay
The Omron H3CR-A8 AC100-240/DC100-125 is a high-performance multifunctional solid-state analog timer designed for critical HVACR control logic and industrial automation. Featuring an 8-pin plug-in configuration, this 1/16 DIN (48x48mm) unit offers five selectable operating modes including ON-delay, Flicker OFF start, Flicker ON start, Interval, and One-shot. Its broad supply voltage handling of 100-240 VAC or 100-125 VDC significantly reduces inventory requirements by replacing multiple dedicated-voltage components. The DPDT relay output provides a 5A contact rating at 250 VAC, ensuring reliable switching for contactors and dampers. With a versatile time range from 0.05 seconds to 300 hours and a high-precision analog dial, this timer allows for rapid field adjustments and repeatable accuracy in complex heating or cooling sequences. Integrating this Omron H3CR series timer ensures compatibility with standard octal sockets, making it a drop-in solution for panel builders and service technicians alike.
Key Benefits- Versatile Power Compatibility: Supports a wide 100-240 VAC and 100-125 VDC range for global application flexibility.
- Multi-Mode Operation: Choose from five functions (A, B, B2, E, J) via a front-surface rotary selector.
- Extensive Timing Bounds: Covers everything from fractions of a second up to 300 hours across multiple scales.
- Standardized Fitment: Compact 48 x 48 mm panel size conforms to standard 8-pin round socket mounting.
- Visual Diagnostics: Integrated LED indicators provide immediate feedback on power status and operation output.
How do I set the operating mode on the H3CR-A8?
Use a small flathead screwdriver to rotate the mode selector located on the top right corner of the front face until the desired letter (A, B, B2, E, or J) appears in the window.
Can this timer be mounted on a DIN rail?
Yes, but it requires a compatible 8-pin round socket (such as the Omron P2CF-08) which mounts directly to the rail.
Does this model support external signal inputs like Start or Reset?
The H3CR-A8 is a power-start model. For external signal-start capabilities, the 11-pin H3CR-A variant is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
