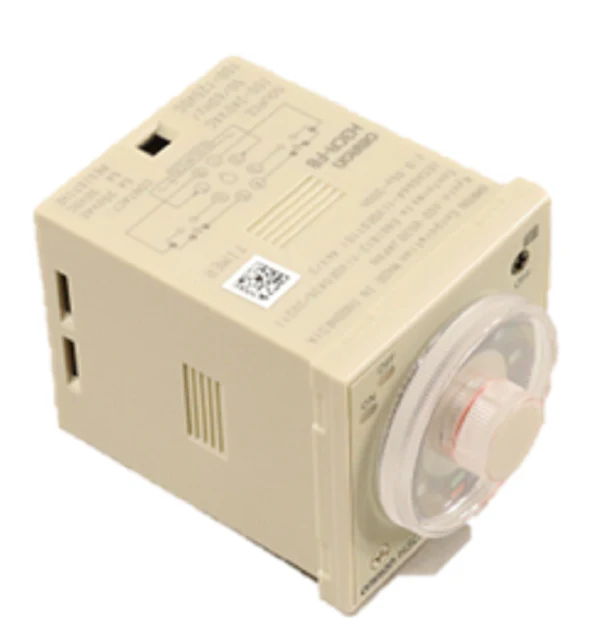

Omron H3CR-F8-AC100-240 Timer
The Omron H3CR-F8-AC100-240 is a high-performance twin timer designed for precise flicker-off start operation in demanding HVACR control circuits. Operating on a wide voltage range of 100-240VAC, this 8-pin plug-in timer features independent ON and OFF time settings, allowing technicians to calibrate sequences from 0.05 seconds to 30 hours. The 48 x 48 mm DIN size ensures seamless integration into standard control panels or surface mounting applications. Engineered for durability, it utilizes a DPDT (time-limit) contact output rated for a 5A resistive load at 250VAC. This solid-state relay excels in applications requiring high-frequency switching and reliable timing accuracy, minimizing downtime during cyclic motor control or solenoid sequencing. Its UL and CSA certification ensures compliance with safety standards for commercial and industrial installations. By utilizing the H3CR dual-dial interface, contractors can achieve exact cycle management without the drift associated with lower-grade components.
Key Benefits for Technicians- Wide Timing Range: Covers 0.05s to 30h across multiple time scales for maximum application flexibility.
- Independent Adjustment: Separate dials for ON/OFF intervals allow for asymmetric cyclic operation.
- Universal Voltage: Supports 100-240VAC, reducing the inventory needed for various job sites.
- Standardized Footprint: 1/16 DIN 8-pin socket mount compatible with P2CF-08 or P3G-08 bases.
- Visual Diagnostics: LED indicators provide immediate status for power and output activation during troubleshooting.
How do I set the time scale on the H3CR-F8?
Use a small flat-head screwdriver to rotate the selectors at the bottom corners of the faceplate to toggle between seconds, minutes, and hours.
Can this timer be used for a flicker-on start application?
No, the H3CR-F8 is specifically designed for flicker-off start. If your circuit requires a flicker-on start, you will need the H3CR-F8N model.
Is the output configuration dry contact?
Yes, it provides DPDT dry contacts, meaning you can switch different voltages through the relay terminals than the supply voltage powering the timer.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
