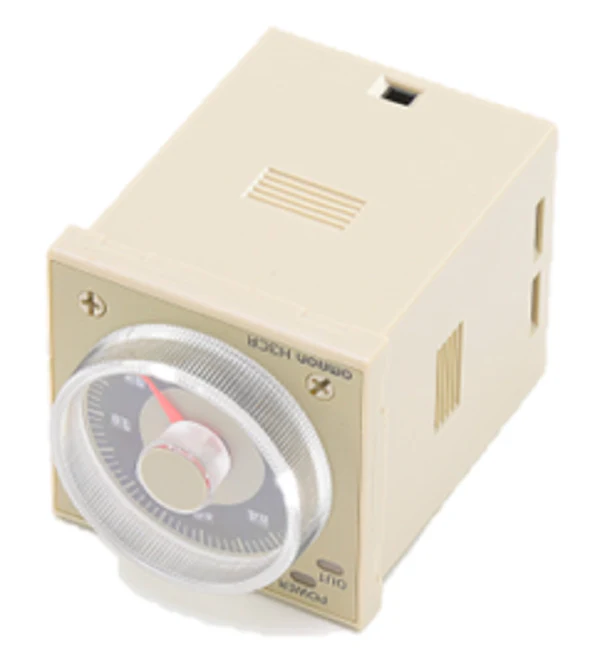

Omron H3CR-A8E-AC100-240 Timer
The Omron H3CR-A8E-AC100-240 is a high-performance multi-functional solid-state timer designed for precise timing control in commercial HVACR and industrial automation panels. This 1/16 DIN 8-pin plug-in timer operates on a wide voltage range of 100-240VAC or 100-125VDC, providing maximum field flexibility for contractors. It features a unique output configuration consisting of one SPDT time-limit contact and one SPDT instantaneous contact, allowing for synchronized control of secondary circuits. With a versatile time range from 0.05 seconds to 300 hours and five selectable operating modes—including ON-delay, flicker OFF start, flicker ON start, signal ON/OFF delay, and interval—this unit replaces multiple single-function timers. The analog dial ensures intuitive setup and troubleshooting in high-vibration environments where digital displays may fail. Its robust construction ensures long-term repeat accuracy and dielectric strength across complex sequence control applications.
Key Benefits- Dual Contact Configuration: Features both time-limit and instantaneous SPDT relay outputs for advanced logic control.
- Universal Voltage Input: Compatible with 100-240VAC and 100-125VDC, reducing inventory requirements for service vans.
- Extensive Timing Range: Covers 0.05 seconds to 300 hours, making it suitable for short-cycle protection or long-duration defrost cycles.
- Standard 8-Pin Connection: Fits standard circular sockets for rapid "hot-swap" replacement in existing control panels.
- High Environmental Resistance: Certified for UL, CSA, and CE compliance with excellent immunity to electrical noise and interference.
How do I configure the operating mode on this timer?
The operating mode is set using the rotary selector located on the bottom left of the faceplate. Ensure power is disconnected before changing modes to prevent logic errors in the controller.
What is the difference between the H3CR-A8 and the H3CR-A8E?
The "E" suffix indicates the inclusion of an instantaneous output contact. While both are 8-pin timers, the A8 has two time-limit contacts, whereas the A8E provides one time-limit and one instantaneous contact.
Can this unit be panel mounted?
Yes, while it uses an 8-pin socket, it can be flush-mounted into a standard 48 x 48 mm panel cutout using a Y92F-30 adapter and P3G-08 socket.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
